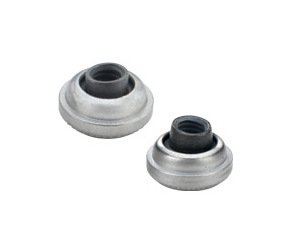

PEM F10 Metric Self-Clinching Floating Receptacle Nuts
PEM F10 Metric Self-Clinching Floating Receptacle Nuts
SKU:PEM-fa5878
Precision-engineered PEM F10 Metric Self-Clinching Nuts for secure metal fastening. M5 x 0.8 thread, zinc-plated, ANSI/ASME B1.13M compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PEM F10 Metric Self-Clinching Floating Receptacle Nuts
$12.99
Quantity: 1
Claim Your Seller Account
PEM F10 Metric Self-Clinching Floating Receptacle Nuts
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM F10 Metric Self-Clinching Floating Receptacle Nuts are engineered for secure fastening in metal sheets with precision specifications including M5 x 0.8 thread size, heat-treated carbon steel construction, zinc plating for corrosion resistance, and compliance with ANSI/ASME B1.13M standards. These nuts offer a shank diameter of 0.97 mm, ideal for sheet thicknesses of at least 1 mm, with precise dimensions for seamless installation. Trust in PennEngineering® (PEM®) quality for your industrial fastening needs.

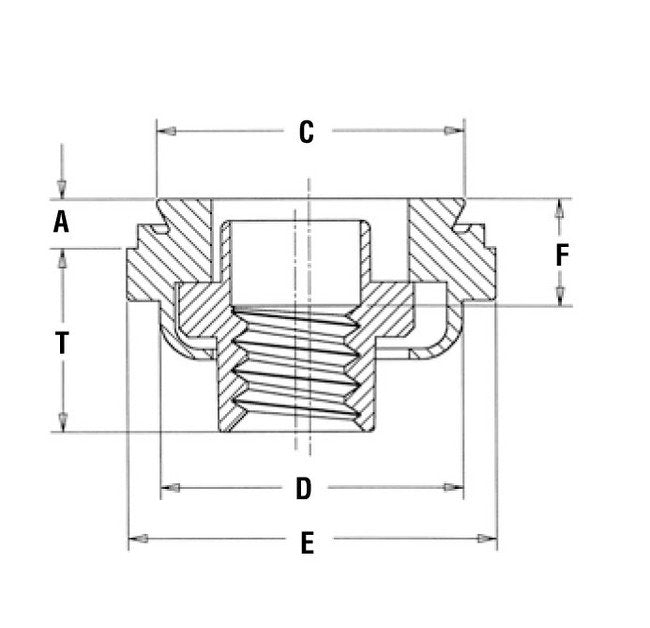

Product Specifications
Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
10.29 mm
Specifications D Max
10.29 mm
Specifications E Max
11.94 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications F 025
2.59 mm
Specifications Hole Size In Sheet 008
10.31 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
9.14 mm
Specifications Min Sheet Thickness
1 mm
Specifications Shank Code
1
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6H
Specifications Type
F10
Specifications T 025
6.53 mm
