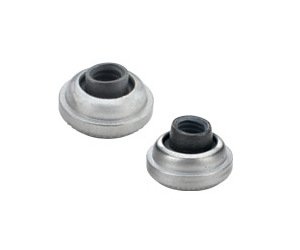

PEM F10 Self-Clinching Floating Receptacle Nuts - Metric
PEM F10 Self-Clinching Floating Receptacle Nuts - Metric
SKU:PEM-938c4e
Precision-engineered PEM F10 Self-Clinching Nuts in M3 x 0.5 thread size for secure and durable fastening on metal sheets.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PEM F10 Self-Clinching Floating Receptacle Nuts - Metric
$12.99
Quantity: 1
Claim Your Seller Account
PEM F10 Self-Clinching Floating Receptacle Nuts - Metric
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM F10 Self-Clinching Floating Receptacle Nuts in Metric M3 x 0.5 thread size are precision engineered from heat-treated carbon steel, zinc plated per ASTM B633 standards. With a shank size of 1mm, they are designed for use in metal sheets of 1mm thickness, offering a secure and reliable fastening solution. Featuring ANSI/ASME B1.13M thread specification and compliant with HRB 70 sheet hardness, these nuts are ideal for industrial applications requiring durability and adherence to stringent quality standards.
Product Specifications

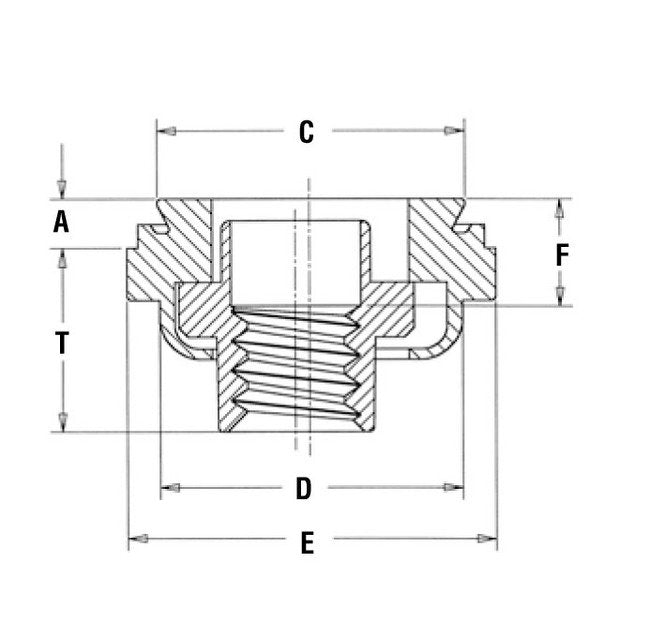

Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
7.34 mm
Specifications D Max
7.37 mm
Specifications E Max
9.15 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications F 025
2.59 mm
Specifications Hole Size In Sheet 008
7.37 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
7.62 mm
Specifications Min Sheet Thickness
1 mm
Specifications Shank Code
1
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6H
Specifications Type
F10
Specifications T 025
5.08 mm
