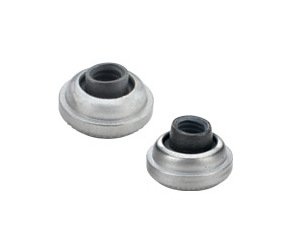

PEM F10 Self-Clinching Floating Receptacle Nuts Unified
PEM F10 Self-Clinching Floating Receptacle Nuts Unified
SKU:PEM-4486cc
Enhance metal panel assemblies with PEM F10 Self-Clinching Floating Receptacle Nuts. Heat-treated carbon steel, zinc plated, ANSI B1.1 thread specification.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM F10 Self-Clinching Floating Receptacle Nuts Unified
$14.99
Quantity: 1
Claim Your Seller Account
PEM F10 Self-Clinching Floating Receptacle Nuts Unified
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your metal panel assemblies with the PEM F10 Self-Clinching Floating Receptacle Nuts. These nuts feature heat-treated carbon steel construction, zinc plating for corrosion resistance, and meet ANSI B1.1 thread specifications. With a thread size of .190-32 (#10-32) and compatibility with sheets of .040 in thickness, these nuts ensure secure fastening in diverse applications.

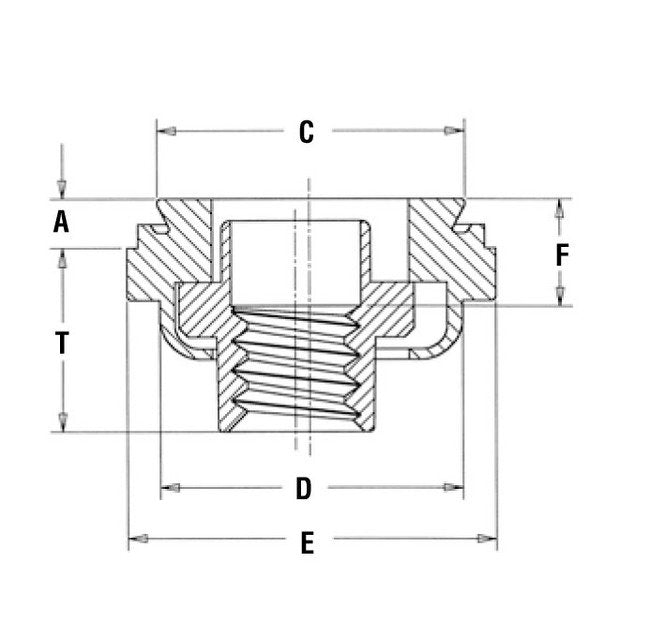

Product Specifications
Specifications A Shank Max
0.038 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
.405 in
Specifications D Max
.405 in
Specifications E Max
.470 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications F 010
.102 in
Specifications Hole Size In Sheet 0003 0000
.406 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.360 in
Specifications Min Sheet Thickness
.040 in
Specifications Shank Code
1
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2B
Specifications Type
F10
Specifications T 010
.250 in
