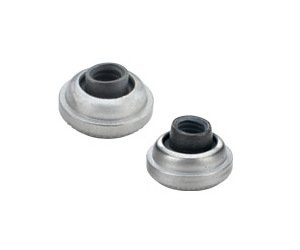

The PEM F10 Self-Clinching Floating Receptacle Nuts are designed for secure fastening in metal sheets, offering a thread size of .164-32 (#8-32) and a shank diameter of 0.038 inches. These nuts are heat-treated carbon steel with a zinc plated finish, meeting ANSI B1.1, 2B specifications. With a min. sheet thickness of .040 inches and easy installation in sheets up to HRB 70 hardness, they provide reliable performance and durability for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

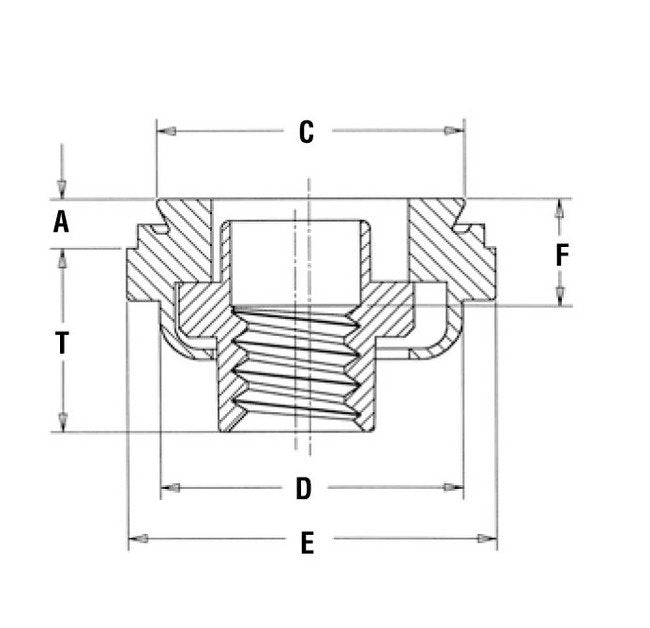

Specifications A Shank Max
0.038 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
.367 in
Specifications D Max
.365 in
Specifications E Max
.440 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications F 010
.102 in
Specifications Hole Size In Sheet 0003 0000
.368 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.040 in
Specifications Shank Code
1
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2B
Specifications Type
F10
Specifications T 010
.191 in
