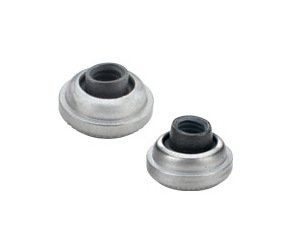

PEM F10 Self-Clinching Floating Receptacle Nuts - Unified, Thread Size .112-40 (#4-40)

Name: PEM F10 Self-Clinching Floating Receptacle Nuts - Unified, Thread Size .112-40 (#4-40)
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-f092d0
Price: 29.99 USD
Availability: OutOfStock

SKU:PEM-f092d0

PEM F10 Self-Clinching Nuts - Durable, precise threaded nuts for secure metal sheet fastening.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your assembly processes with PEM F10 Self-Clinching Floating Receptacle Nuts. These nuts feature a heat-treated carbon steel construction with a zinc-plated finish, ensuring durability and corrosion resistance. With precise thread specifications meeting ANSI B1.1, 2B standards, they are suitable for metal sheets up to .040 inches thick. Trusted by industries for their reliability and compliant with HRB 70 or less hardness requirements, these nuts guarantee secure fastening solutions.

Product Specifications

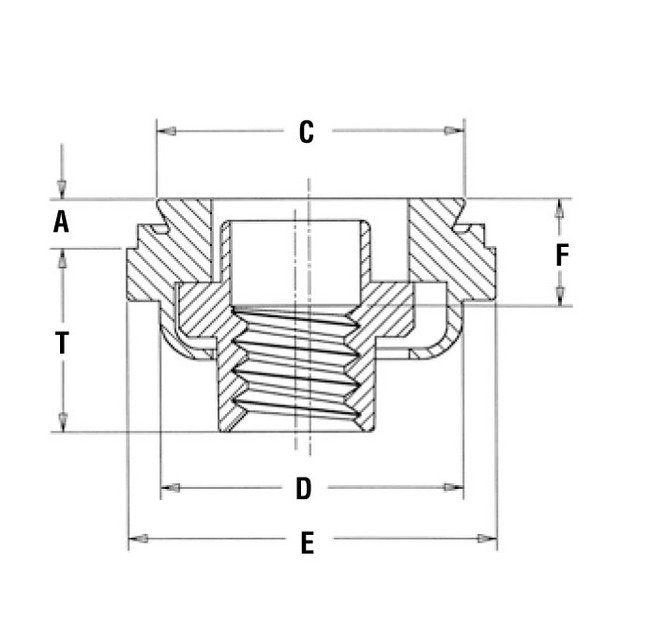

Specifications A Shank Max

0.038 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.289 in

Specifications D Max

.290 in

Specifications E Max

.360 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications F 010

.102 in

Specifications Hole Size In Sheet 0003 0000

.290 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.300 in

Specifications Min Sheet Thickness

.040 in

Specifications Shank Code

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

F10

Specifications T 010

.200 in

PEM F10 Self-Clinching Floating Receptacle Nuts - Unified, Thread Size .112-40 (#4-40)
