PEM Large Knob, Spring-loaded - PF11MF & PF12MF - Unified
PEM Large Knob, Spring-loaded - PF11MF & PF12MF - Unified
SKU:PEM-16f800
Effortlessly install these durable PEM Large Knobs flush on panels for a secure finish. ANSI B1.1, 2A compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM Large Knob, Spring-loaded - PF11MF & PF12MF - Unified
$14.99
Quantity: 1
Claim Your Seller Account
PEM Large Knob, Spring-loaded - PF11MF & PF12MF - Unified
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

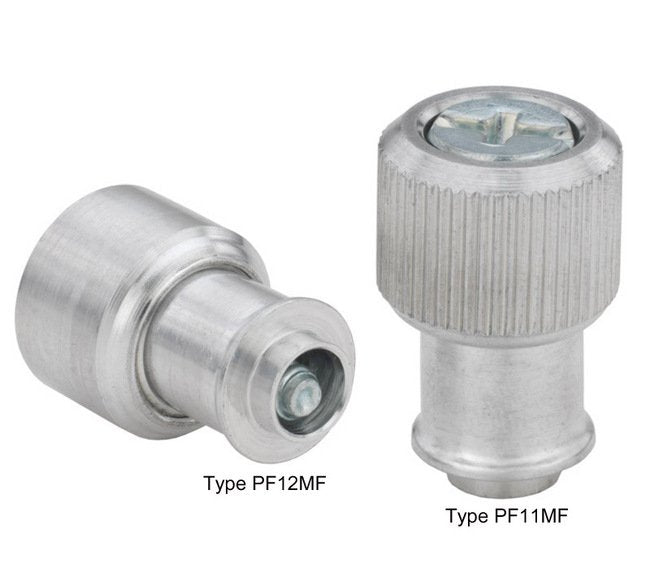

The PEM Large Knob, Spring-loaded - Types PF11MF and PF12MF - Unified are designed for close centerline-to-edge applications with effortless installation and compatibility with various panel hardness. Made with high-quality materials like aluminum, heat-treated carbon steel, and 300 series stainless steel, ensuring durability. This product installs flush on the back side of panels, providing a secure and professional finish. Meeting ANSI B1.1, 2A standards, these knobs offer precision and reliability for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

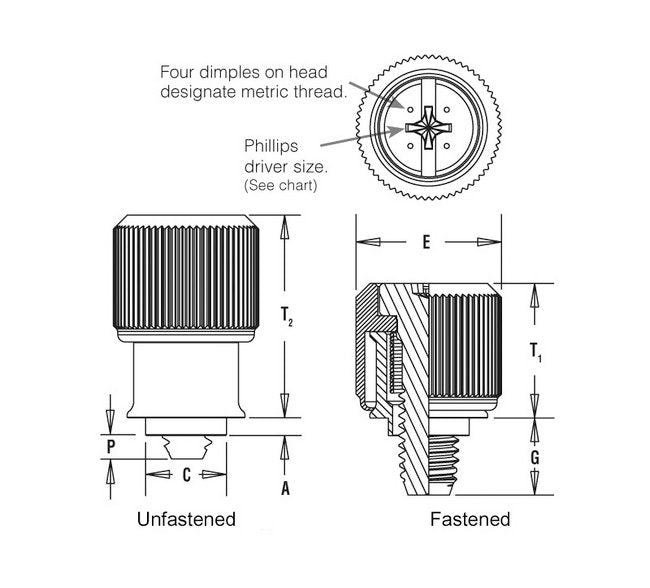

Product Specifications
Specifications A Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.322 in
Specifications Driver Size
Slotted/#3; Phillips
Specifications E 010
.575 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.350 in
Specifications Hole Size In Sheet 0005 0000
.323 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Knob (aluminum) â Black AnodizeScrew (steel and stainless) â Black Nitride
Specifications P 025
.024 in
Specifications Screw Length Code
1
Specifications T1 Nom
.530 in
Specifications T2 Nom
.790 in
Specifications Thread Code
0420
Specifications Thread Size
.250-20 (1/4-20)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Smooth Cap - PF12MF
