PEM Metric Self-Locating Weld Nuts WN/WNS
PEM Metric Self-Locating Weld Nuts WN/WNS
SKU:PEM-15eca6
Boost efficiency with PEM Metric Self-Locating Weld Nuts WN/WNS. ASME B1.13M compliant, corrosion-resistant stainless steel nuts for thin metal sheets.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Metric Self-Locating Weld Nuts WN/WNS
$29.99
Quantity: 1
Claim Your Seller Account
PEM Metric Self-Locating Weld Nuts WN/WNS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance production efficiency with PEM Metric Self-Locating Weld Nuts WN/WNS. These stainless steel weld nuts provide load-bearing threads in thin metal sheets, minimizing the need for complicated welding processes. Resistant to corrosion, they ensure durability. Compliant with ASME B1.13M standards and finished as per ASTM A380, these nuts offer ease of installation, reducing labor costs significantly.
Product Specifications

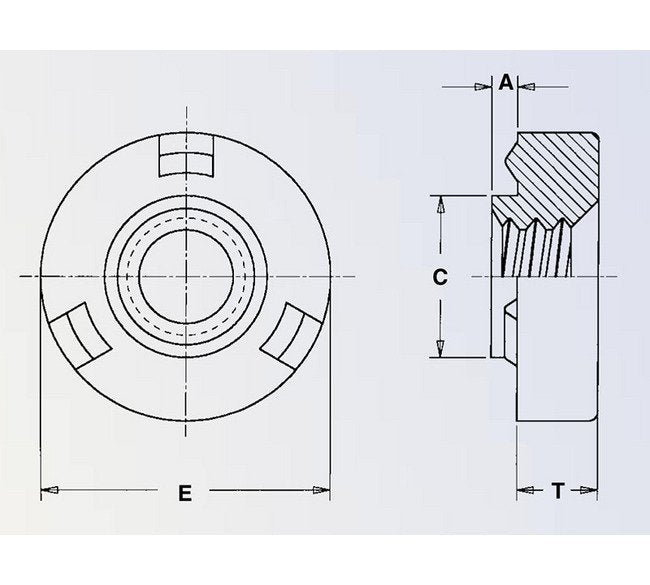

Specifications A Shank Max
0.77 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
5.51 mm
Specifications E 025
9.42 mm
Specifications Hole Size In Sheet 01
5.54 mm
Specifications Min Dist Hole Cl To Edge
4.71 mm
Specifications Min Sheet Thickness
0.77 mm
Specifications Shank Code
0
Specifications Standard Finish
Passivated and/or tested per ASTM A380
Specifications Standard Material
300 Series Stainless Steel
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
6H per ASME B1.13M
Specifications Type
WNS
Specifications T 01
2.58 mm
