PEM N10 Self-Clinching Receptacle Nuts - Metric M4 x 0.7

Name: PEM N10 Self-Clinching Receptacle Nuts - Metric M4 x 0.7
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-cf489e
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-cf489e

Secure fastening solution for metal sheets and panels. Heat-treated carbon steel with zinc plated finish. ANSI/ASME thread spec compliant. HRB 80 or HB 150 sheet hardness compatibility.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

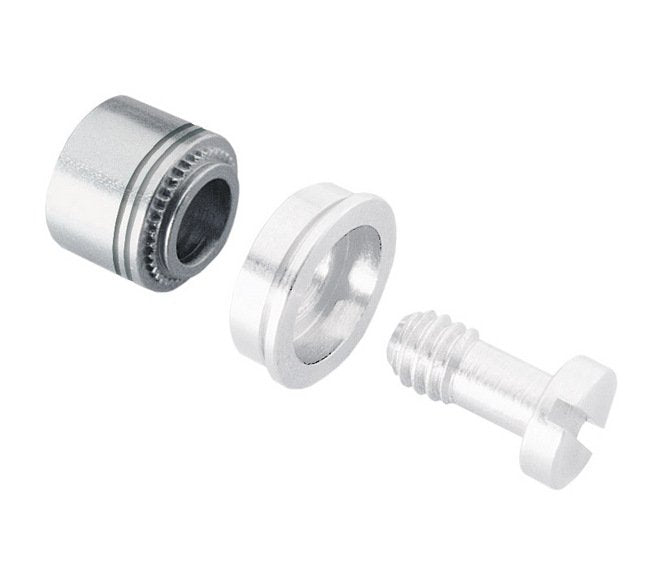

The PEM N10 Self-Clinching Receptacle Nuts in Metric M4 x 0.7 thread size offer secure fastening solutions for metal sheets and panels. Made of heat-treated carbon steel with a zinc plated finish, these nuts ensure durability and corrosion resistance. With adherence to ANSI/ASME thread specifications and compatibility with sheet hardness up to HRB 80 or HB 150, these nuts meet stringent industry standards. Ideal for captive panel screws and hardware applications, the N10 nuts provide reliability and ease of installation.

Product Specifications

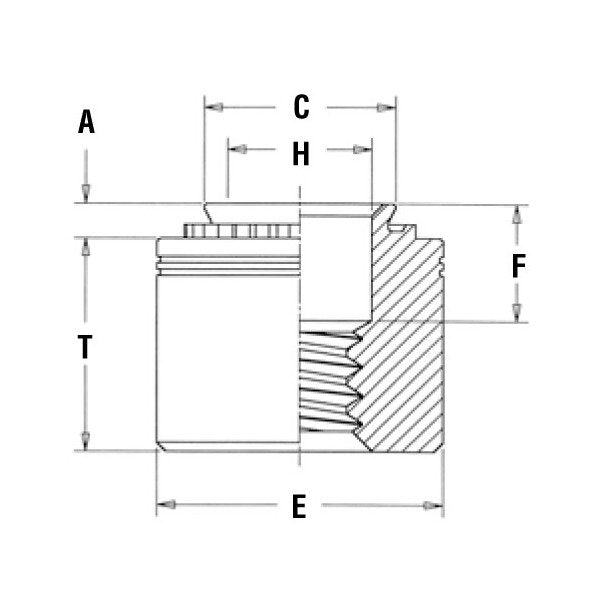

Specifications A Shank Max

0.97 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

6.33 mm

Specifications E Nom

8.64 mm

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications F 025

3.30 mm

Specifications Hole Size In Sheet 008

6.35 mm

Specifications H Nom

4.75 mm

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

7.11 mm

Specifications Min Sheet Thickness

1 mm

Specifications Shank Code

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6H

Specifications Type

N10

Specifications T 013

6 mm
