PEM N10 Self-Clinching Receptacle Nuts - Unified, Thread Size .112-40

Name: PEM N10 Self-Clinching Receptacle Nuts - Unified, Thread Size .112-40
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-ac0c36
Price: 15.99 USD
Availability: OutOfStock

SKU:PEM-ac0c36

PEM N10 Receptacle Nuts, .112-40 Thread, Heat-Treated Carbon Steel, Zinc Plated, ANSI & ASTM Compliant

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

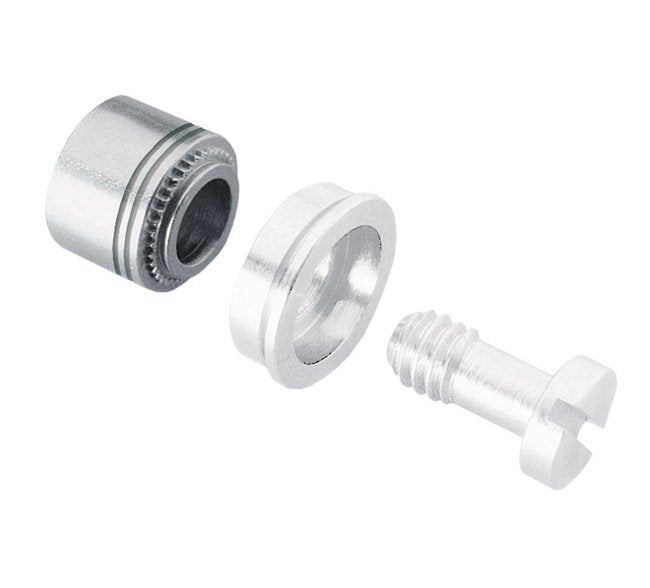

The PEM N10 Self-Clinching Receptacle Nuts are designed for secure fastening in metal sheets with a thread size of .112-40. Constructed from heat-treated carbon steel with a zinc plated finish, these nuts ensure durability and corrosion resistance. With compliance to ANSI, ASTM, and hardness standards, they are ideal for applications requiring reliable fastening solutions.

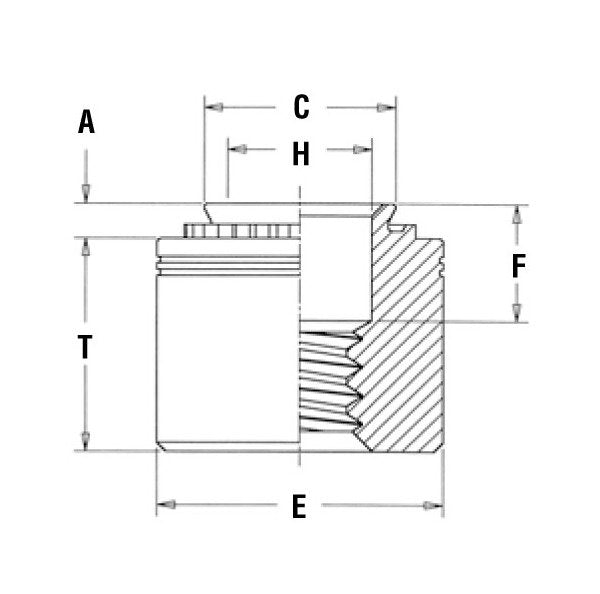

Product Specifications

Specifications A Shank Max

0.038 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.186 in

Specifications E Nom

.280 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications F 010

.130 in

Specifications Hole Size In Sheet 0003 0000

.187 in

Specifications H Nom

.126 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.22 in

Specifications Min Sheet Thickness

.040 in

Specifications Shank Code

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

N10

Specifications T 005

.240 in
