Precision-engineered N10 Self-Clinching Receptacle Nuts for secure fastening in metal sheets. ANSI standard compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

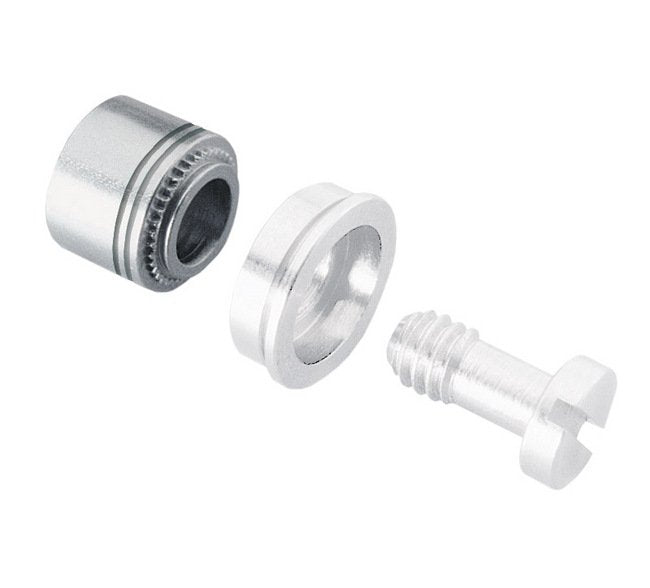

The PEM N10 Self-Clinching Receptacle Nuts in Unified Thread Size .138-32 (#6-32) are designed for secure fastening in metal sheets with a thickness range of .040 in to .212 in. Made of heat-treated carbon steel with a zinc-plated finish, these nuts meet ANSI standards for thread specification ensuring reliability. With dimensions compliant to industry standards, these nuts are ideal for applications requiring precision and durability.

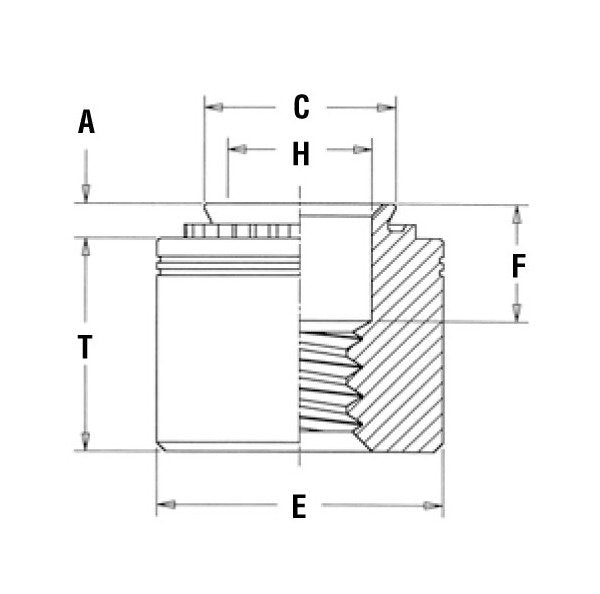

Product Specifications

Specifications A Shank Max

0.038 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.212 in

Specifications E Nom

.310 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications F 010

.130 in

Specifications Hole Size In Sheet 0003 0000

.213 in

Specifications H Nom

.156 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.27 in

Specifications Min Sheet Thickness

.040 in

Specifications Shank Code

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

N10

Specifications T 005

.240 in
