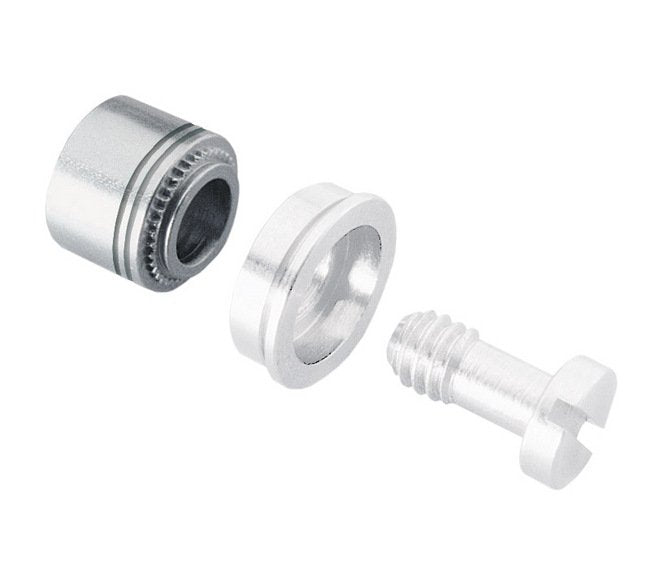

The PEM N10 Self-Clinching Receptacle Nuts are precision-engineered fasteners designed for securely fastening components to metal sheets. With a thread size of .164-32 (#8-32), these nuts ensure a tight and durable connection. Made of heat-treated carbon steel and zinc-plated per ASTM B633, SC1, they offer excellent corrosion resistance. Suitable for sheets with a minimum thickness of .040 in and hardness up to HRB 80 or HB 150, these nuts meet stringent ANSI B1.1, 2B thread specifications. Trusted by PennEngineering® (PEM®), these nuts are ideal for applications requiring reliability and compliance with industry standards.

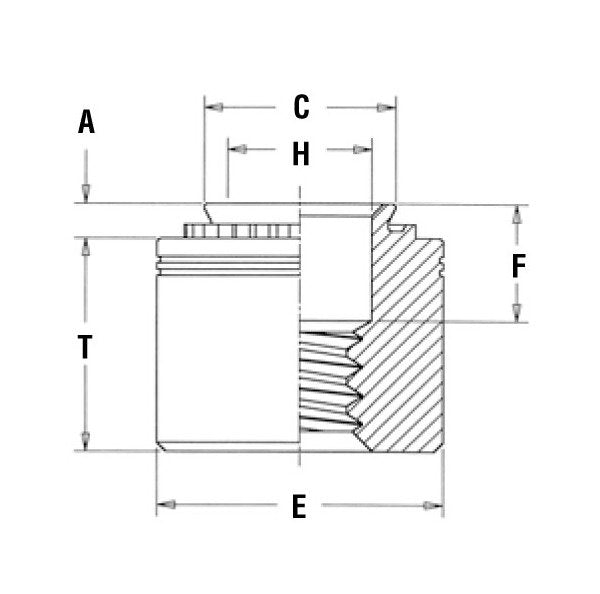

Product Specifications
Specifications A Shank Max
0.038 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
.249 in
Specifications E Nom
.340 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications F 010
.130 in
Specifications Hole Size In Sheet 0003 0000
.250 in
Specifications H Nom
.187 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.040 in
Specifications Shank Code
1
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2B
Specifications Type
N10
Specifications T 005
.240 in
