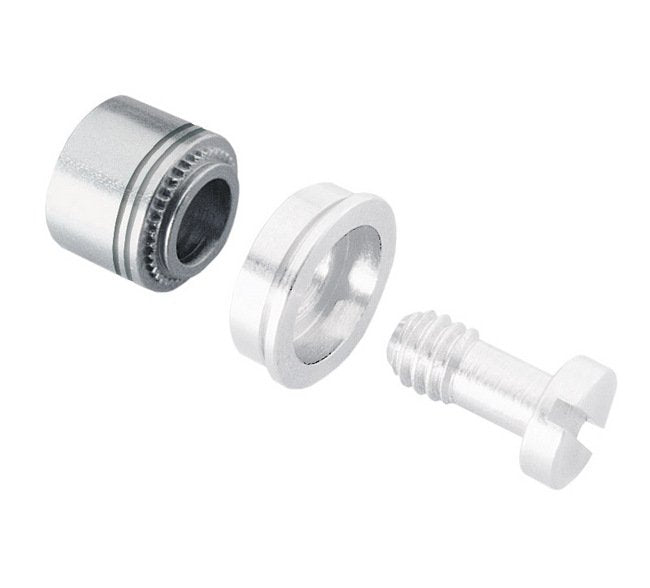

The PEM N10 Self-Clinching Receptacle Nuts are precision-engineered for secure fastening in metal sheets and panels. Featuring a Thread Size of .190-32 (#10-32) and Zinc plated finish per ASTM B633, these nuts ensure durability and corrosion resistance. With compliance to ANSI B1.1, 2B Thread Specification and HRB 80 or Less Sheet Hardness, these nuts meet the stringent requirements of government and institutional procurement standards.

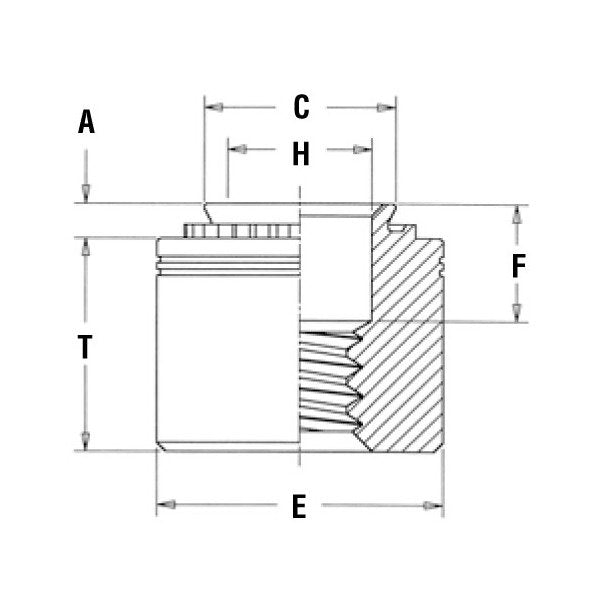

Product Specifications
Specifications A Shank Max
0.038 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
.276 in
Specifications E Nom
.370 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications F 010
.130 in
Specifications Hole Size In Sheet 0003 0000
.277 in
Specifications H Nom
.213 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.31 in
Specifications Min Sheet Thickness
.040 in
Specifications Shank Code
1
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2B
Specifications Type
N10
Specifications T 005
.240 in
