PEM PR10 Metric Self-Clinching Retainers
PEM PR10 Metric Self-Clinching Retainers
SKU:PEM-82232f
High-quality PEM PR10 Metric Self-Clinching Retainers for secure fastening in metal sheets. M4 x 0.7 Thread, 300 Series Stainless Steel, Passivated Finish. ANSI/ASME B1.13M Compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM PR10 Metric Self-Clinching Retainers
$14.99
Quantity: 1
Claim Your Seller Account
PEM PR10 Metric Self-Clinching Retainers
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

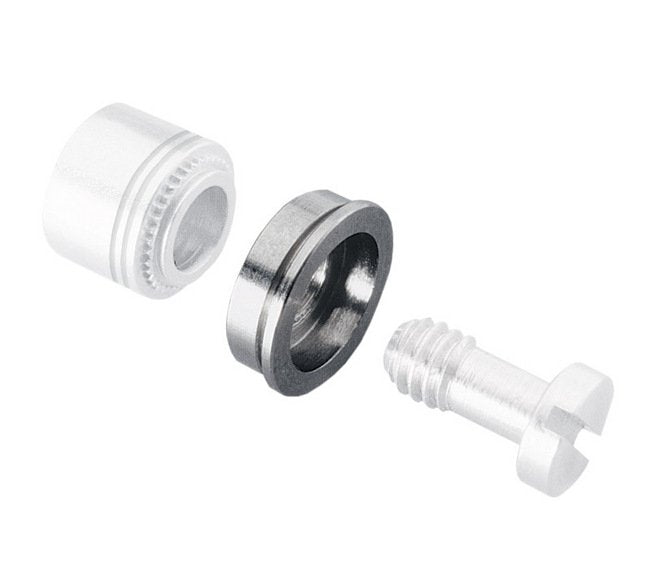

The PEM PR10 Metric Self-Clinching Flush-Mounted Retainers are precision-engineered for secure and efficient fastening in metal sheets. With a thread size of M4 x 0.7 and made from high-quality 300 Series Stainless Steel, these retainers offer exceptional durability and corrosion resistance. Designed for use in sheets with a minimum thickness of 1.27mm, they feature a passivated finish per ASTM A380 for enhanced protection against environmental factors. Meeting ANSI/ASME B1.13M thread specifications and suitable for sheets with a hardness of HRB 70 or less, the PR10 retainers ensure reliable performance in a wide range of applications.

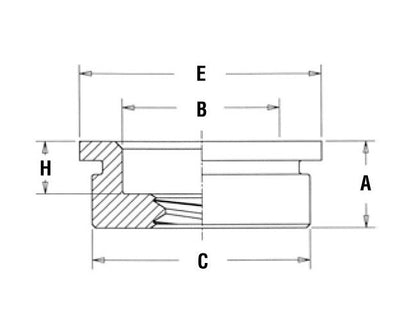

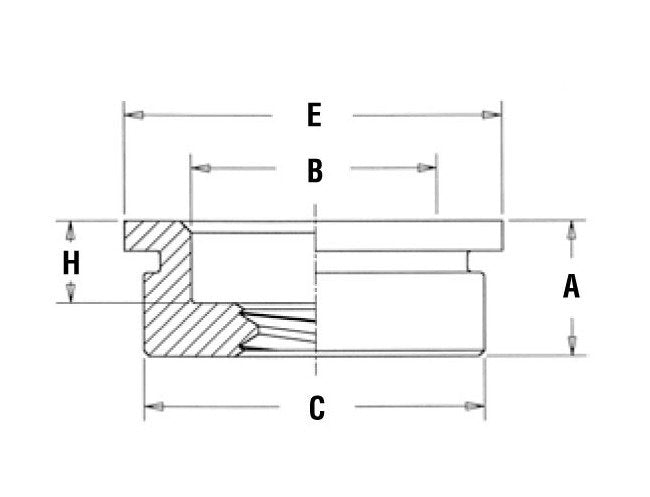

Product Specifications
Specifications A Shank Max
3.18 mm
Specifications B Nom
6.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
8.72 mm
Specifications E Nom
9.53 mm
Specifications Finish
Passivated and/or tested per ASTM A380
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
8.74 mm
Specifications H Nom
1.91 mm
Specifications Material
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.64 mm
Specifications Min Sheet For Flush Installation
3.18 mm
Specifications Min Sheet For Self Clinching
1.27 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6H
Specifications Type
PR10
