Securely fasten metal sheets with PEM PR10 Self-Clinching Retainers. Made of durable stainless steel, passivated to ASTM A380 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

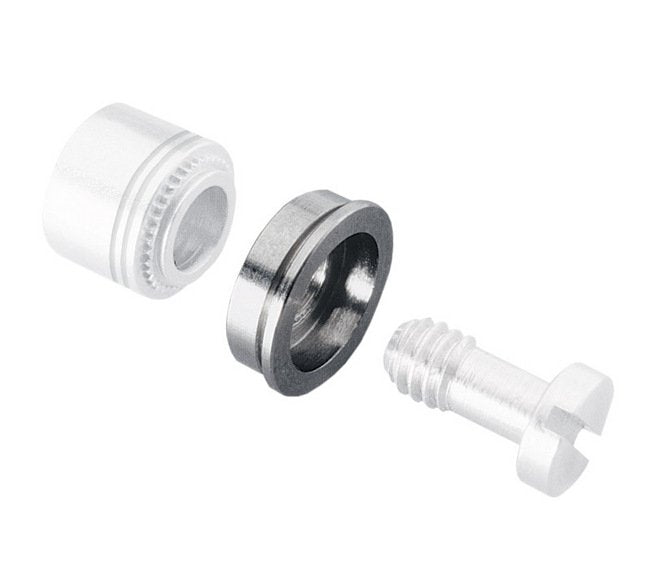

The PEM PR10 Self-Clinching Flush-Mounted Retainers are designed for secure fastening in metal sheets with a thickness ranging from 0.050 in to 0.125 in. Crafted from durable 300 Series Stainless Steel and passivated to ASTM A380 standards, these retainers offer reliable performance and corrosion resistance. With ANSI B1.1, 2B thread specification and compatibility with HRB 70 or less sheet hardness, these retainers meet stringent industry requirements for precision engineering and long-lasting durability.

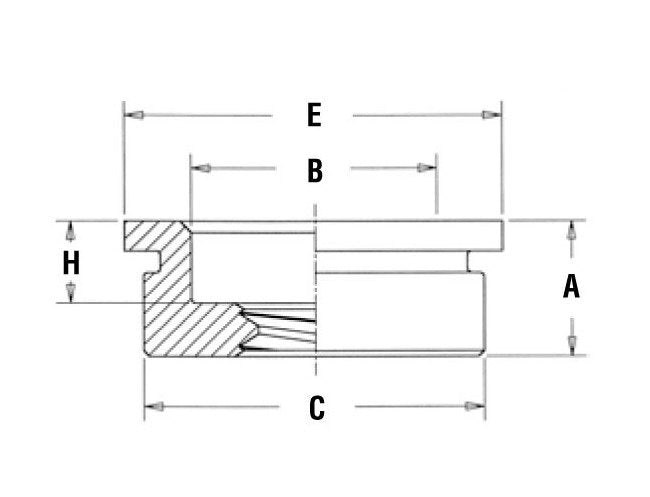

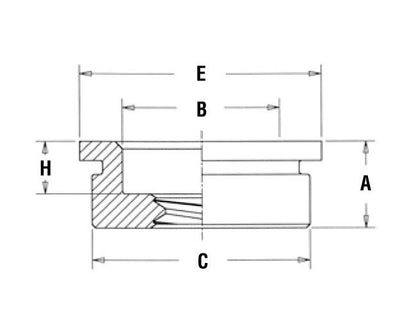

Product Specifications

Specifications A Shank Max

.125 in

Specifications B Nom

.290 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.374 in

Specifications E Nom

.41 in

Specifications Finish

Passivated and/or tested per ASTM A380

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.375 in

Specifications H Nom

.075 in

Specifications Material

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.360 in

Specifications Min Sheet For Flush Installation

.125 in

Specifications Min Sheet For Self Clinching

.050 in

Specifications Thread Code

032

Specifications Thread Size

.190-32 (#10;-32)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

PR10
