PEM PS10 Flush-Mounted Screw - Metric
PEM PS10 Flush-Mounted Screw - Metric
SKU:PEM-d9a4a3
High-quality PEM PS10 Flush-Mounted Screw - Metric for secure and flush mounting on metal sheets. ANSI/ASME B1.13M, 6g thread specifications. Durable 300 Series Stainless Steel construction.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM PS10 Flush-Mounted Screw - Metric
$14.99
Quantity: 1
Claim Your Seller Account
PEM PS10 Flush-Mounted Screw - Metric
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

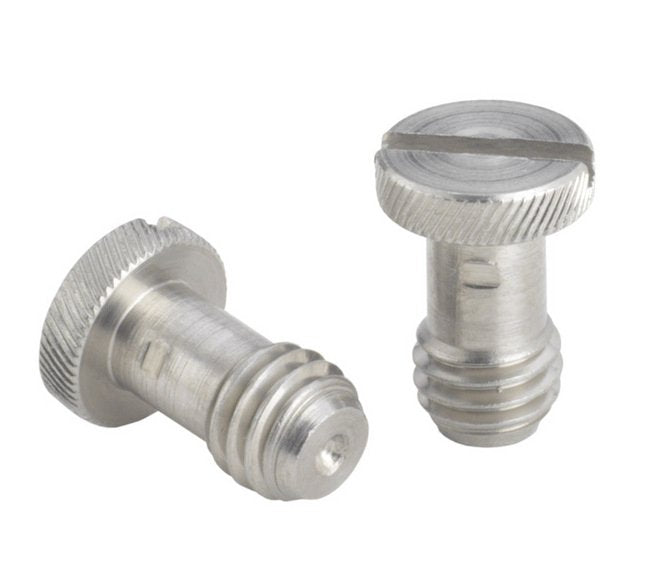

The PEM PS10 Flush-Mounted Screw - Metric is a high-quality fastening solution designed for metal sheets and panels. With a thread size of M3 x 0.5 and made of 300 Series Stainless Steel, this screw offers durability and corrosion resistance. It meets ANSI/ASME B1.13M, 6g thread specifications and is finished with passivation as per ASTM A380 standards. The screw's precise dimensions ensure a secure flush-mounted fit, making it ideal for applications requiring a reliable and streamlined fastening solution.
Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)

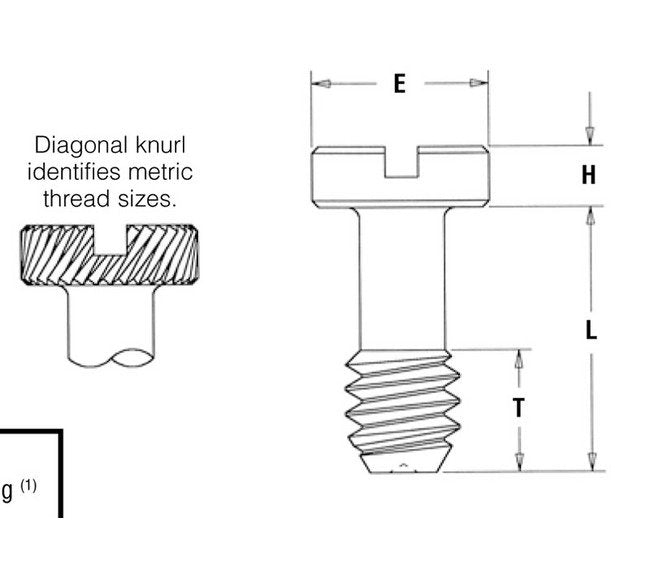

Specifications E Nom
4.70 mm
Specifications Finish
Passivated and/or tested per ASTM A380
Specifications H 005 015
1.91 mm
Specifications L 025
8.38 mm
Specifications Material
300 Series Stainless Steel
Specifications Screw Length Code
40
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PS10
Specifications T Nom
3.30 mm
