Enhance electronic assemblies with the compact and RoHS-compliant PEM ReelFast MicroPEM SMTSO Metric Surface Mount Nuts/Standoffs.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

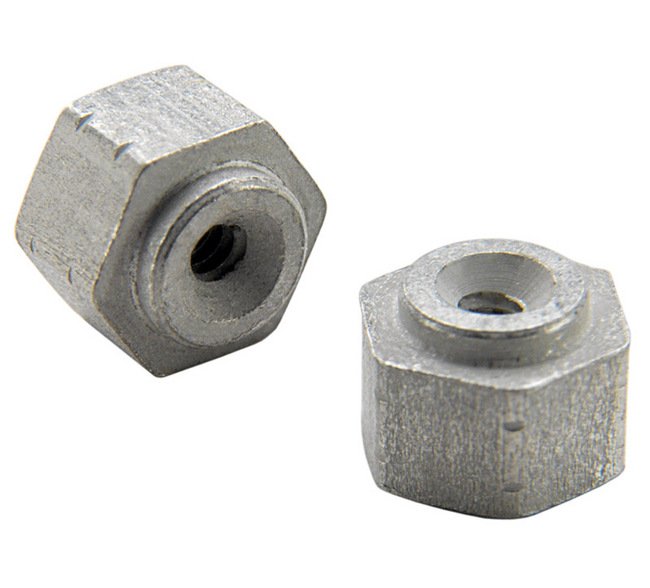

The PEM ReelFast MicroPEM SMTSO Metric Surface Mount Nuts/Standoffs are designed for compact electronic assemblies, offering reliable nut/standoff solutions for P.C. Boards. Featuring a hex-shaped barrel for enhanced soldering area and ease of installation, these fasteners reduce board handling and meet RoHS compliance. With a thread size starting at M1/#0-80 and a minimum sheet thickness of 0.5mm/.020", these fasteners provide efficient and secure mounting during automated reflow solder processes.

Product Specifications

Specifications A Max

0.48 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

2.41 mm

Specifications D Min Solder Pad

4.19 mm

Specifications E Ref

3.66 mm

Specifications Fastener Material

Carbon Steel

Specifications For Use In

P.C. Board

Specifications For Use In Sheet Hardness

Not Applicable

Specifications H Hole Size In Sheet 008

2.50 mm

Specifications Length Code

Specifications L Length 008

2 mm

Specifications Min Sheet Thickness

0.50 mm

Specifications Parts Per Reel

2500

Specifications Pitch

8.00 mm

Specifications Standard Finish

Electro-Plated Tin, ASTM B545, Class A with Clear Preservative Coating, Annealed

Specifications Thread Code

Specifications Thread Size

Specifications Thread Specification

Miniature ISO 1501, 4H6

Specifications X Nom

3.18 mm
