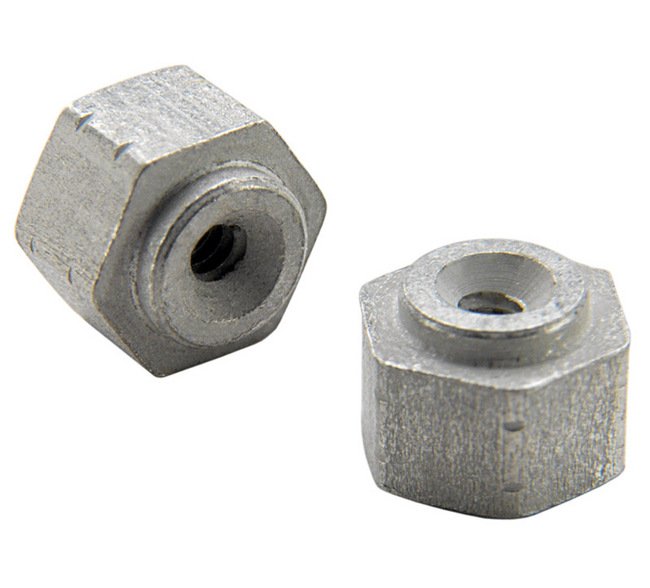

The PEM ReelFast® microPEM® SMTSO Metric Surface Mount Nuts/Standoffs are designed for compact electronic assemblies, attaching easily to P.C. Boards for nut/standoff applications. Featuring a hex-shaped barrel for ample solder area, these fasteners come on tape and reel, streamlining board handling during the automated solder process. With a minimum sheet thickness of 0.5 mm, these RoHS compliant fasteners offer precision and reliability in electronic applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

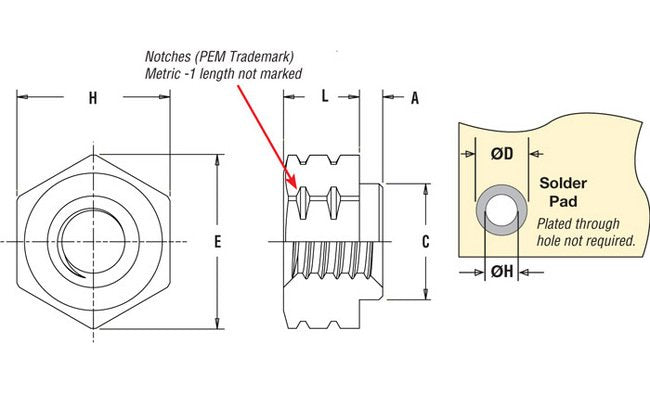

Specifications A Max
0.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
2.41 mm
Specifications D Min Solder Pad
4.19 mm
Specifications E Ref
3.66 mm
Specifications Fastener Material
Carbon Steel
Specifications For Use In
P.C. Board
Specifications For Use In Sheet Hardness
Not Applicable
Specifications H Hole Size In Sheet 008
2.50 mm
Specifications Length Code
2
Specifications L Length 008
2 mm
Specifications Min Sheet Thickness
0.50 mm
Specifications Parts Per Reel
2500
Specifications Pitch
8.00 mm
Specifications Standard Finish
Electro-Plated Tin, ASTM B545, Class A with Clear Preservative Coating, Annealed
Specifications Thread Code
M1.6
Specifications Thread Size
M1.6 x 0.35
Specifications Thread Specification
Metric ASME B1.13M
Specifications X Nom
3.18 mm
