The PEM ReelFast® microPEM® Surface Mount Nuts/Standoffs in Type SMTSO are ideal for compact electronic assemblies, attaching to P.C. Boards effortlessly. These fasteners mount seamlessly on P.C. Boards, providing a larger solder area with a hex-shaped barrel design. With features like tape and reel packaging, reduced board handling, and RoHS compliance, they offer reliability and efficiency in automated assembly processes. Meeting stringent Metric ASME B1.13M specifications, these fasteners ensure secure fixings with a thread size of M1.6 x 0.35 and a minimum sheet thickness of 0.50 mm.
Ready to Grow Without Cash Flow Constraints?

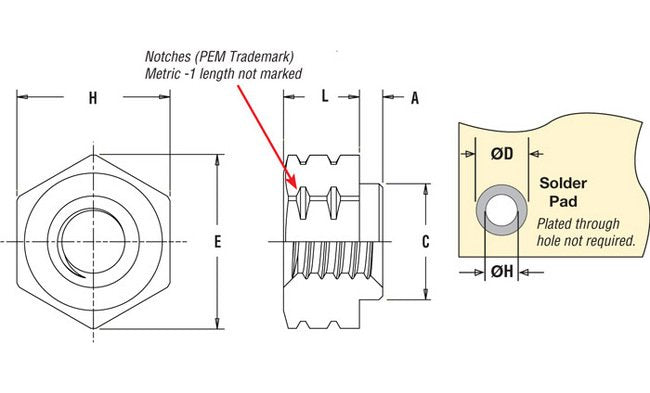

Product Specifications
Specifications A Max
0.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
2.41 mm
Specifications D Min Solder Pad
4.19 mm
Specifications E Ref
3.66 mm
Specifications Fastener Material
Carbon Steel
Specifications For Use In
P.C. Board
Specifications For Use In Sheet Hardness
Not Applicable
Specifications H Hole Size In Sheet 008
2.50 mm
Specifications Length Code
3
Specifications L Length 008
3 mm
Specifications Min Sheet Thickness
0.50 mm
Specifications Parts Per Reel
2000
Specifications Pitch
8.00 mm
Specifications Standard Finish
Electro-Plated Tin, ASTM B545, Class A with Clear Preservative Coating, Annealed
Specifications Thread Code
M1.6
Specifications Thread Size
M1.6 x 0.35
Specifications Thread Specification
Metric ASME B1.13M
Specifications X Nom
3.18 mm
