PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

PEM-af57ad

The PEM SCBR Captive Panel Screw with Self-Retracting Spring offers easy installation, secure captivation, and reliable self-retracting functionality for efficient metal sheet applications.

$15.99
$15.99
Sale

Initiate Order

PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

$15.99

Quantity: 1

Claim Your Seller Account

PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

$15.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

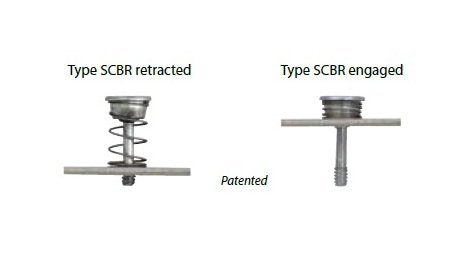

The PEM Type SCBR™ Captive Panel Screw with Self-Retracting Spring features easy installation by pressing into a hole, securely captivating the screw and spring, enabling free spinning. It is designed to captivate thin sheets as minimal as .040 inches, keeping the screw retracted when disengaged. This economical solution replaces loose hardware, ensuring seamless operations with a close centerline-to-edge distance. Compliant with RoHS standards, each Type SCBR screw is accompanied by mating springs, offering reliability and convenience in metal sheet applications.

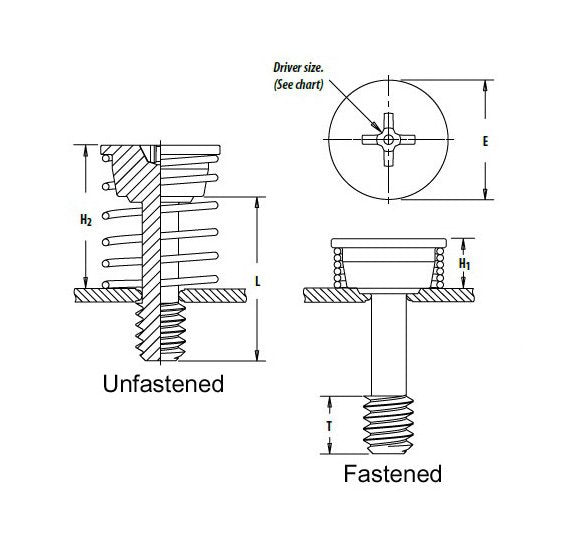

Product Specifications

Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
#2 Phillips
Specifications E 005 010
.410 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
Specifications H1 005
.175 in
Specifications H2 Ref
.505 in
Specifications Hole Size In Sheet 0003 0000
.164 in
Specifications L Length 015
.500 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.205 in
Specifications Min Sheet Thickness
.040 in
Specifications Screw Length Code
8
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
SCBR
Specifications T Nom
.130 in
