PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring

Name: PEM SCBR Captive Panel Screw-Tool with Self-Retracting Spring
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-6cd310
Price: 19.99 USD
Availability: OutOfStock

SKU:PEM-6cd310

PEM SCBR Captive Panel Screw-Tool: Economical self-retracting solution for metal sheets, RoHS compliant, zinc-plated, meets industry standards

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

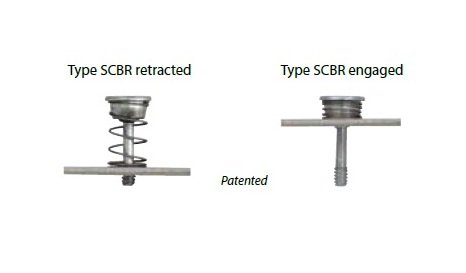

The PEM SCBR Captive Panel Screw-Tool features a spinning clinch bolt design for easy installation in metal sheets as thin as .040''. The controlled clinching action permanently captivates the screw and spring, providing an economical self-retracting solution that replaces loose hardware. This heat-treated carbon steel screw is RoHS compliant, zinc-plated for durability, and comes with mating springs for added convenience. With a #1 Phillips driver size and close centerline-to-edge distance compatibility, this SCBR screw meets the highest industry standards.

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

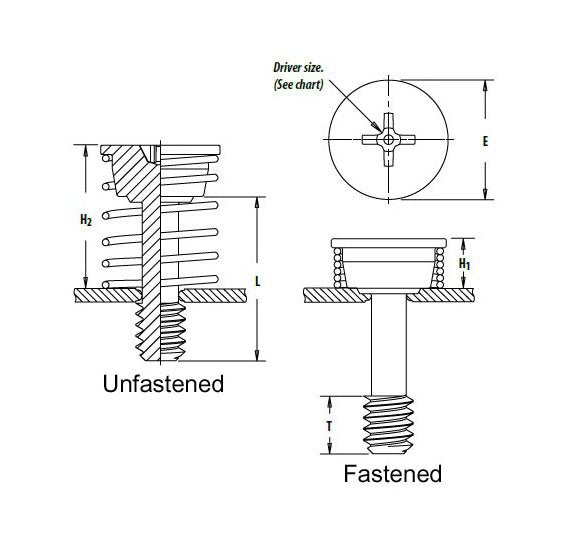

Specifications Cad View

Unfastened

Specifications Driver Size

#1 Phillips

Specifications E 005 010

.348 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications H1 005

.165 in

Specifications H2 Ref

.495 in

Specifications Hole Size In Sheet 0003 0000

.112 in

Specifications L Length 015

.500 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.175 in

Specifications Min Sheet Thickness

.040 in

Specifications Screw Length Code

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

SCBR

Specifications T Nom

.130 in
