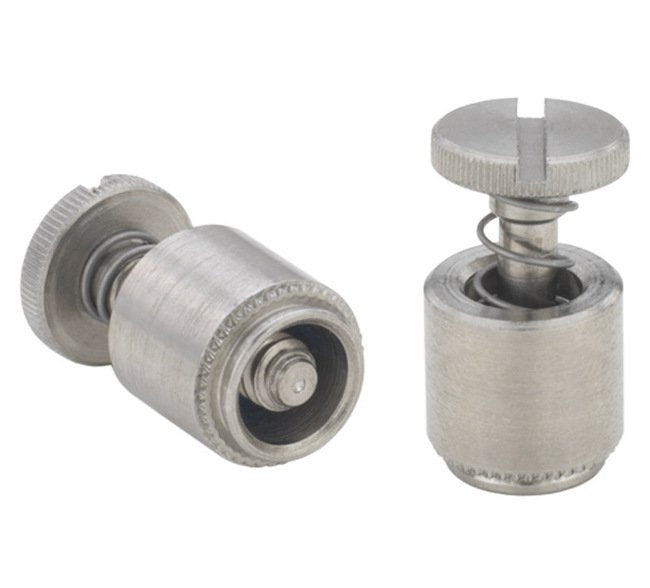

PEM Screw Head, Spring-loaded Unified PFC2, PFS2

PEM Screw Head, Spring-loaded Unified PFC2, PFS2

PEM-cbd2c5

Precision-engineered PEM Screw Head, Spring-loaded for metal sheets, with 300 Series Stainless Steel construction. Easy tool/finger operation.

$29.99
$29.99
Sale

Initiate Order

PEM Screw Head, Spring-loaded Unified PFC2, PFS2

PEM Screw Head, Spring-loaded Unified PFC2, PFS2

$29.99

Quantity: 1

Claim Your Seller Account

PEM Screw Head, Spring-loaded Unified PFC2, PFS2

PEM Screw Head, Spring-loaded Unified PFC2, PFS2

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Screw Head, Spring-loaded Unified Types PFC2 and PFS2 are precision-engineered fasteners designed for metal sheets and panels. Made from high-quality 300 Series Stainless Steel, these screws ensure durability and corrosion resistance. With thread size .138-32 (#6-32) and various screw lengths available, they meet strict industry standards including ANSI B1.1 and ASTM A380. Ideal for applications requiring operator access, these screws offer easy tool or finger operation, making installation and maintenance hassle-free.

Product Specifications

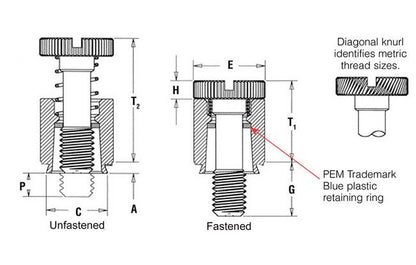

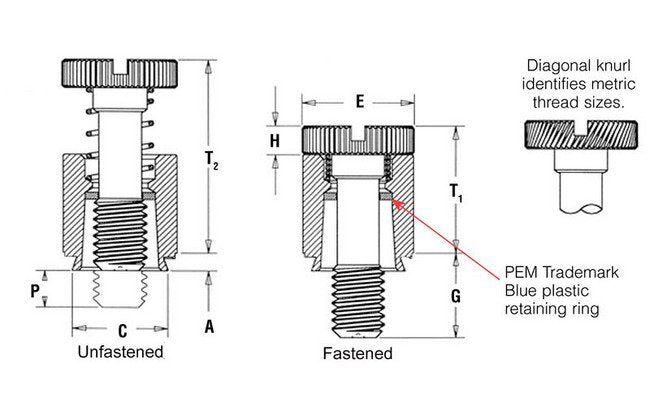

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.280 in
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.500 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
84
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2
