PEM Screw Head, Spring-loaded - Unified Types PFC2, PFS2
PEM Screw Head, Spring-loaded - Unified Types PFC2, PFS2
SKU:PEM-49a9de
Premium PEM Screw Head for metal sheets, UL 508 compliant, versatile tool/finger operation, stainless steel, various sizes & lengths.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Screw Head, Spring-loaded - Unified Types PFC2, PFS2
$29.99
Quantity: 1
Claim Your Seller Account
PEM Screw Head, Spring-loaded - Unified Types PFC2, PFS2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

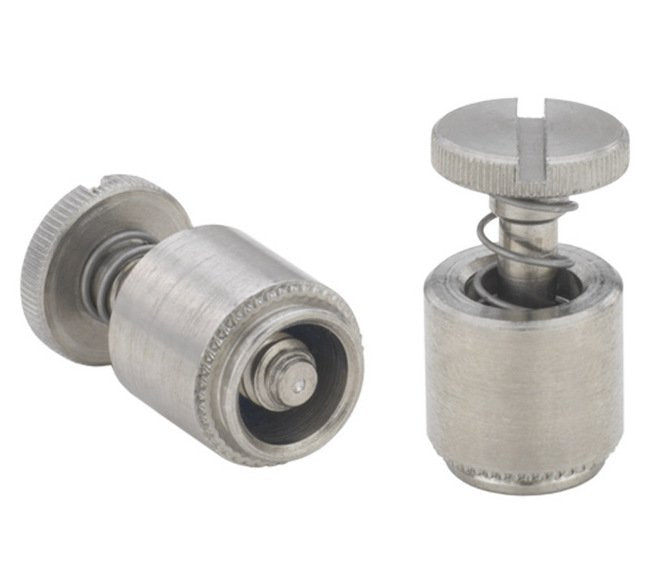

The PEM Screw Head, Spring-loaded - Unified Types PFC2, PFS2 is designed for easy operator access in metal sheets and panels, meeting UL 508 standards. This screw offers versatile tool or finger operation options across various sizes and three screw lengths. With precise specifications and premium stainless steel materials, it ensures secure fastening and durability in demanding environments.
Product Specifications

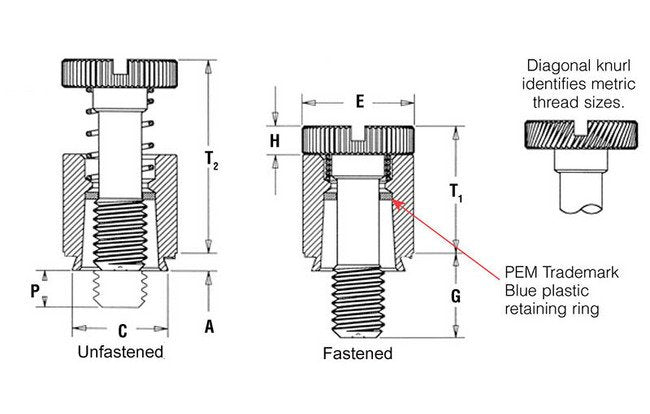

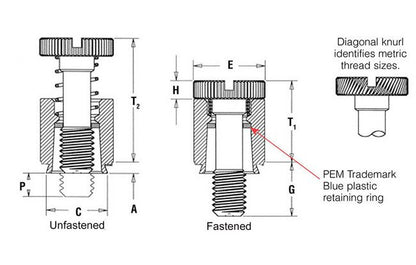

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.280 in
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
62
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2
