PEM Self-Locating Projection Weld Nuts - Metric Type WN, WNS

Name: PEM Self-Locating Projection Weld Nuts - Metric Type WN, WNS
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-740f8f
Price: 29.99 USD
Availability: OutOfStock

SKU:PEM-740f8f

Optimize metal sheet assembly with PEM Self-Locating Projection Weld Nuts - Types WN, WNS. Fast, efficient, and corrosion-resistant, ensuring easy installation.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your metal sheet assembly process with PEM Self-Locating Projection Weld Nuts - Metric Type WN/WNS. Designed to provide load-bearing threads in thin metal sheets without the need for tapping, these weld nuts offer fast and efficient assembly, reducing labor costs. With options for steel or stainless steel, including corrosion-resistant stainless steel, and compatible with various welding equipment, these PEM weld nuts ensure ease of installation and optimal performance. Meet your production needs effectively with PEM Self-Locating Projection Weld Nuts.

Product Specifications

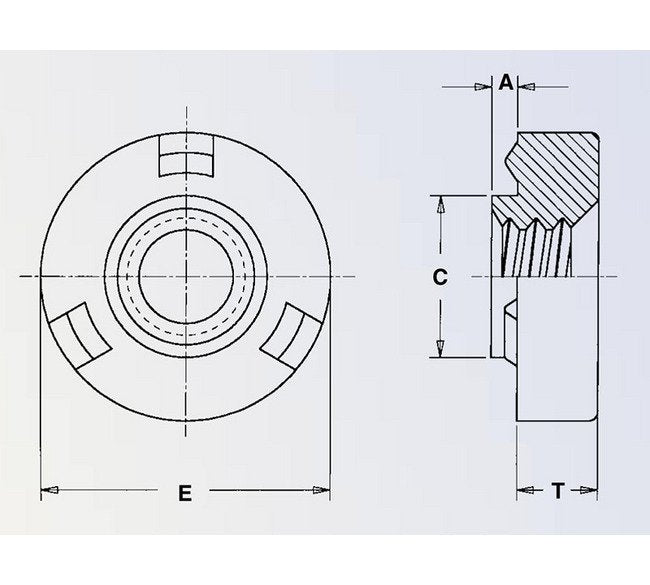

Specifications A Shank Max

0.77 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

5.51 mm

Specifications E 025

9.42 mm

Specifications Hole Size In Sheet 01

5.54 mm

Specifications Min Dist Hole Cl To Edge

4.71 mm

Specifications Min Sheet Thickness

0.77 mm

Specifications Shank Code

Specifications Standard Finish

Copper Flash

Specifications Standard Material

Carbon Steel

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

6H per ASME B1.13M

Specifications Type

Specifications T 01

2.58 mm

PEM Self-Locating Projection Weld Nuts - Metric Type WN, WNS
