PEM Self-Locating Projection Weld Nuts - Metric Type WN/WNS
PEM Self-Locating Projection Weld Nuts - Metric Type WN/WNS
SKU:PEM-bb0de7
Streamline assembly with PEM Self-Locating Projection Weld Nuts for metal sheets, featuring load-bearing threads & corrosion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Self-Locating Projection Weld Nuts - Metric Type WN/WNS
$29.99
Quantity: 1
Claim Your Seller Account
PEM Self-Locating Projection Weld Nuts - Metric Type WN/WNS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

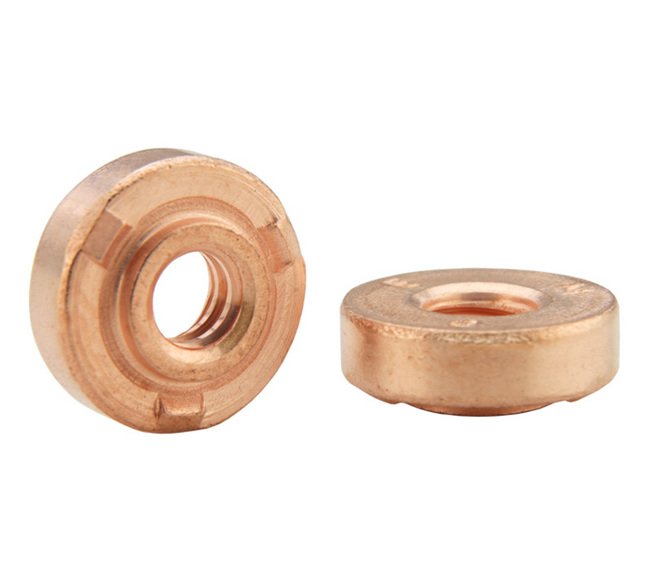

Enhance assembly efficiency with PEM Self-Locating Projection Weld Nuts (Types WN/WNS). Designed for thin metal sheets, these weld nuts provide load-bearing threads, reducing the need for tapping. Featuring resistance to burn-outs and corrosion, choose between steel or stainless steel options for optimal installation. Compliant with ASME B1.13M standards, these weld nuts ensure precise and efficient results, making them ideal for industrial applications.
Product Specifications

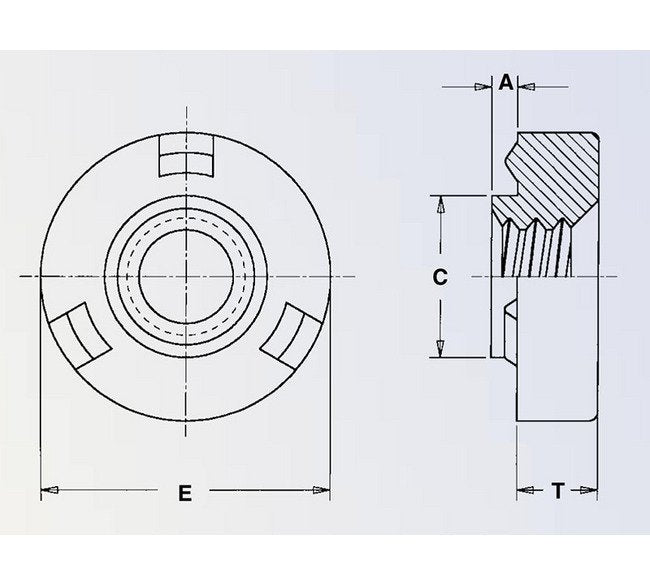

Specifications A Shank Max
1.22 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
8.01 mm
Specifications E 025
13.26 mm
Specifications Hole Size In Sheet 01
8.04 mm
Specifications Min Dist Hole Cl To Edge
6.63 mm
Specifications Min Sheet Thickness
1.24 mm
Specifications Shank Code
0
Specifications Standard Finish
Copper Flash
Specifications Standard Material
Carbon Steel
Specifications Thread Code
M6
Specifications Thread Size X Pitch
M6 x 1
Specifications Thread Specification
6H per ASME B1.13M
Specifications Type
WN
Specifications T 01
4.56 mm
