PEM SFK SpotFast Fasteners for Metal to PCB/Plastic Panels
PEM SFK SpotFast Fasteners for Metal to PCB/Plastic Panels
SKU:PEM-a40ebc
Securely join metal panels to PCB/plastic with precision & durability. Low carbon steel with zinc-plated finish. Industry-compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM SFK SpotFast Fasteners for Metal to PCB/Plastic Panels
$29.99
Quantity: 1
Claim Your Seller Account
PEM SFK SpotFast Fasteners for Metal to PCB/Plastic Panels
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

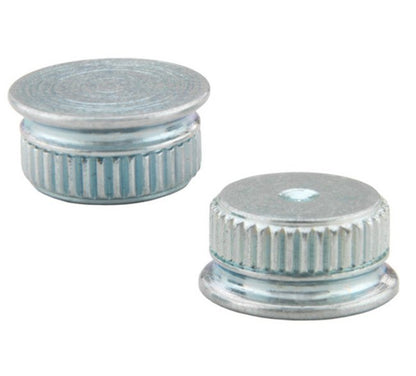

The PEM SFK SpotFast Fasteners are designed for securely joining metal panels to PCB or plastic panels, with the added versatility for single point hinging applications. Featuring precision specifications such as panel thickness tolerances, mounting hole sizes, and maximum dimensions, these fasteners ensure a reliable and durable connection. Crafted from low carbon steel with a zinc-plated finish per ASTM B633, SC1 standards, these fasteners are suitable for sheets with hardness up to HRB 80/HB 150 or lower, meeting stringent industry requirements and ensuring long-lasting performance.
Ready to Grow Without Cash Flow Constraints?

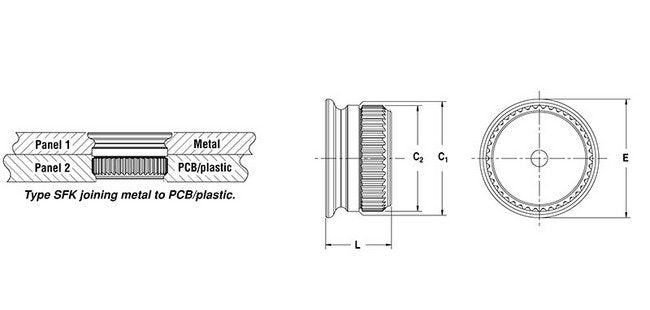

Product Specifications
Specifications C1 Max
2.98 mm | .117 in
Specifications C2 008mm003in
2.90 mm | .114 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E Max
3.76 mm | .148 in
Specifications For Use In Sheet Hardness
HRB 80 / HB 150 or less
Specifications L Max
2.51 mm | .099 in
Specifications Min Dist Hole Cl To Edge
3 mm | .120 in
Specifications Panel 1 Mounting Hole 008mm003 000in
3.00 mm | .118 in
Specifications Panel 1 Thickness 008mm003in
1.00 mm | .039 in
Specifications Panel 2 Mounting Hole 008mm003 000in
2.50 mm | .098 in
Specifications Panel 2 Thickness Min
1.60 mm | .063 in
Specifications Standard Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Standard Material
Low Carbon Steel
