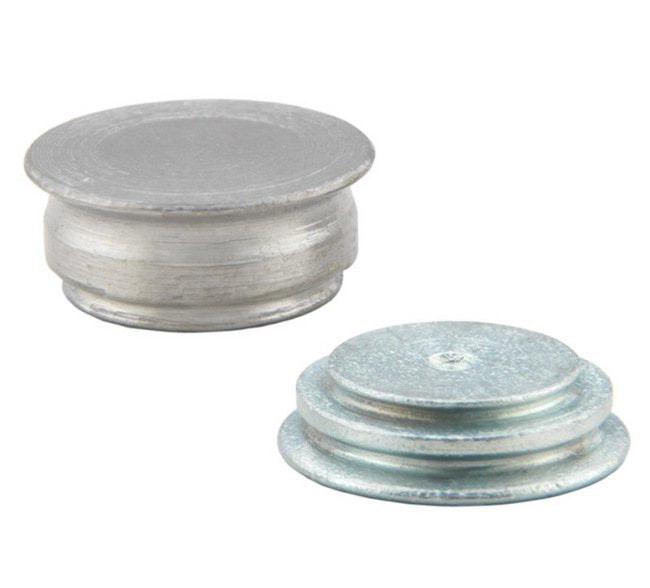

PEM SpotFast Stainless Steel Fasteners
PEM SpotFast Stainless Steel Fasteners
SKU:PEM-4338f4
Join stainless steel panels securely with high corrosion resistance using PEM SpotFast Stainless fasteners. Ideal for metal-to-metal applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM SpotFast Stainless Steel Fasteners
$24.99
Quantity: 1
Claim Your Seller Account
PEM SpotFast Stainless Steel Fasteners
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM SpotFast Stainless Steel Fasteners are designed for joining stainless steel panels with the highest corrosion resistance. Ideal for metal-to-metal applications, these fasteners excel in single-point hinging uses. With precision specifications and a standard finish meeting ASTM A380 requirements, these fasteners ensure secure and durable installations. Manufactured with Precipitation Hardening Grade Stainless Steel, they comply with Federal procurement standards and are CAD supplied by PennEngineering®.
Product Specifications

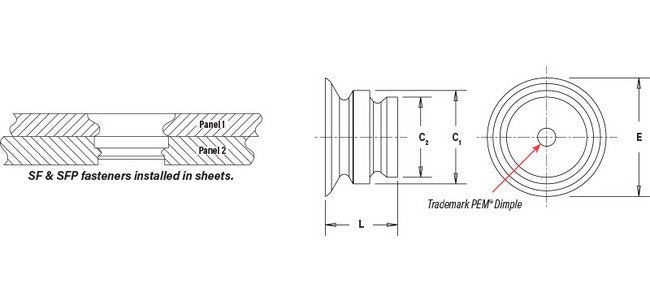

Specifications C1 Max
4.98 mm | .196 in
Specifications C2 Max
4.47 mm | .176 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E Max
5.56 mm | .219 in
Specifications For Use In Sheet Hardness
HRB 88 / HB 183 or Less
Specifications L Max
3.12 mm | .123 in
Specifications Min Dist Hole Cl To Edge
3.6 mm | .14 in
Specifications Panel 1 Mounting Hole 008mm003 000in
5.00 mm | .197 in
Specifications Panel 1 Thickness 008mm003in
1.60 mm | .063 in
Specifications Panel 2 Mounting Hole 008mm003 000in
4.50 mm | .177 in
Specifications Panel 2 Thickness Min
1.60 mm | .063 in
Specifications Standard Finish
Passivated and/or tested per ASTM A380
Specifications Standard Material
Precipitation Hardening Grade Stainless Steel
