PEM Spring-loaded Captive Panel Screws PFC2, PFS2
PEM Spring-loaded Captive Panel Screws PFC2, PFS2
SKU:PEM-0a89d8
PEM Spring-loaded Captive Panel Screws for efficient, tool-friendly metal sheet fastening. Meets UL 508 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Spring-loaded Captive Panel Screws PFC2, PFS2
$29.99
Quantity: 1
Claim Your Seller Account
PEM Spring-loaded Captive Panel Screws PFC2, PFS2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

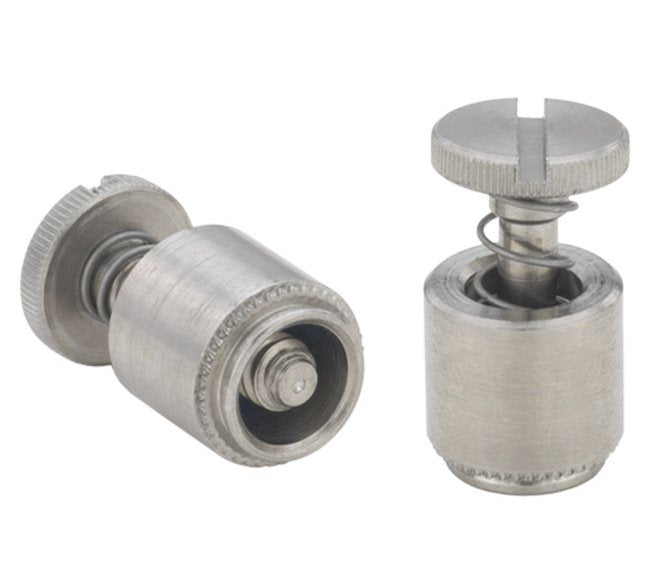

Enhance panel fastening efficiency with PEM Spring-loaded Captive Panel Screws. These screws, available in steel or stainless steel, feature operator-friendly tool or finger operation, ensuring easy access in various applications. With most sizes offering three screw lengths, these screws meet UL 508 standards for 'operator access area', providing versatility for metal sheet and panel fastening needs.

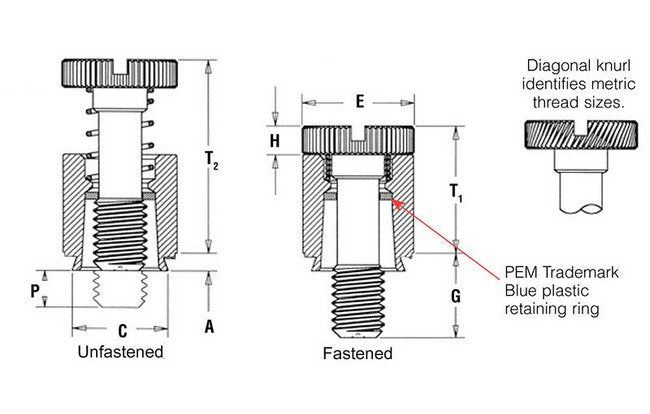

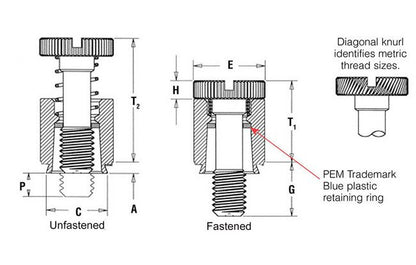

Product Specifications
Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.280 in
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.250 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.000 in
Specifications Screw Length Code
40
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2
