PEM Spring-loaded Screw Head PFC2/PFS2
PEM Spring-loaded Screw Head PFC2/PFS2
SKU:PEM-881685
High-quality PEM Spring-loaded Screw Head meeting UL 508 requirements, easy to operate, and corrosion-resistant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Spring-loaded Screw Head PFC2/PFS2
$29.99
Quantity: 1
Claim Your Seller Account
PEM Spring-loaded Screw Head PFC2/PFS2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

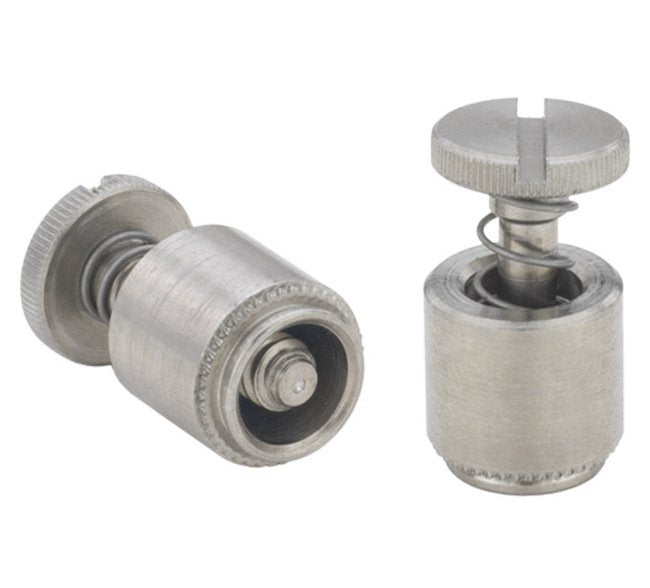

The PEM Spring-loaded Screw Head, Types PFC2 and PFS2, is crafted from 300 Series Stainless Steel, ensuring durability and corrosion resistance for long-term performance. Designed to meet stringent 'operator access area' requirements like UL 508, these screws offer easy tool or finger operation. Available in various sizes and with a passivated finish, they are ideal for fastening metal sheets with precision and reliability.
Product Specifications

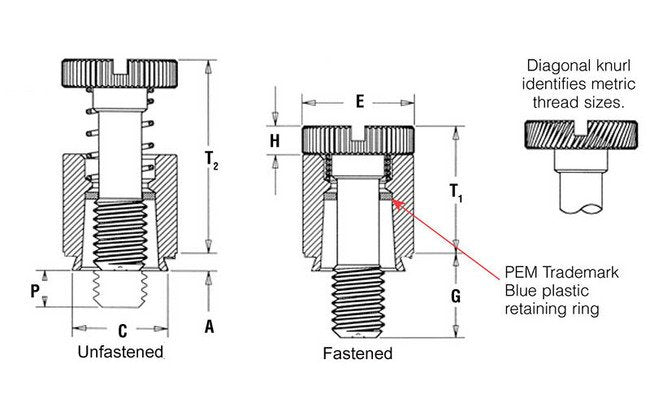

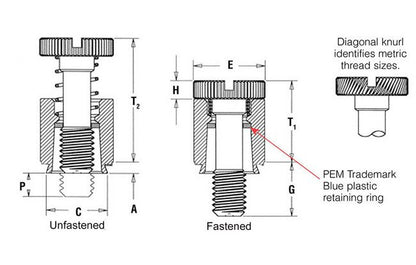

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.343 in
Specifications E 010
.406 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.312 in
Specifications Hole Size In Sheet 0003 0000
.344 in
Specifications H 005
.082 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Retainer â BN â Black NitrideScrew â BN â Black nitride
Specifications P 025
.000 in
Specifications Screw Length Code
50
Specifications T1 Max
.450 in
Specifications T2 Nom
.690 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2
