PEM Steel Standoff with Base Plate - Metric Thread Size M3
PEM Steel Standoff with Base Plate - Metric Thread Size M3
SKU:PEM-9c3af2
Secure and versatile Steel Standoff with Base Plate for efficient fastening on metal sheets. Zinc-plated, ASTM B633 compliant. By PennEngineering (PEM).
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Steel Standoff with Base Plate - Metric Thread Size M3
$24.99
Quantity: 1
Claim Your Seller Account
PEM Steel Standoff with Base Plate - Metric Thread Size M3
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM VariMount fastening system offers a reliable solution without the need for welding. This Steel Standoff with Base Plate provides a secure assembly with a steel base plate featuring radial holes for versatile mounting options. Ideal for fastening or bonding to various panel types, the standoff is made of steel with a zinc-plated finish, meeting ASTM B633 standards. Each component is meticulously crafted by CAD Supplier PennEngineering (PEM) for exceptional quality and durability.
Product Specifications

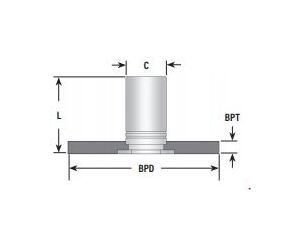

Specifications Base Plate Material
Steel
Specifications Bpd 042
30 mm
Specifications Bpt 01
1.2 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C 013
4.2 mm
Specifications Fastener Material
Steel
Specifications L 005 013
18 mm
Specifications Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Thread Code
M3
Specifications Thread Size
M3 x 0.5
Specifications Type
VM
