PEM Type SCBR Captive Panel Screw Tool

Name: PEM Type SCBR Captive Panel Screw Tool
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-6bcc6f
Price: 15.99 USD
Availability: OutOfStock

SKU:PEM-6bcc6f

Securely captivate screws in thin metal sheets with self-retracting spring, RoHS compliant

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

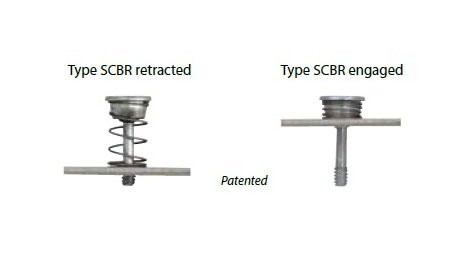

The PEM Type SCBR Captive Panel Screw-Tool features a spinning clinch bolt with a self-retracting spring, designed for easy installation in metal sheets as thin as 1.02 mm. It provides a secure, economical solution by permanently captivates the screw and spring, replacing loose hardware. This self-retracting captive screw allows for close centerline-to-edge distances and is RoHS compliant. Each screw is shipped with mating springs for added convenience.

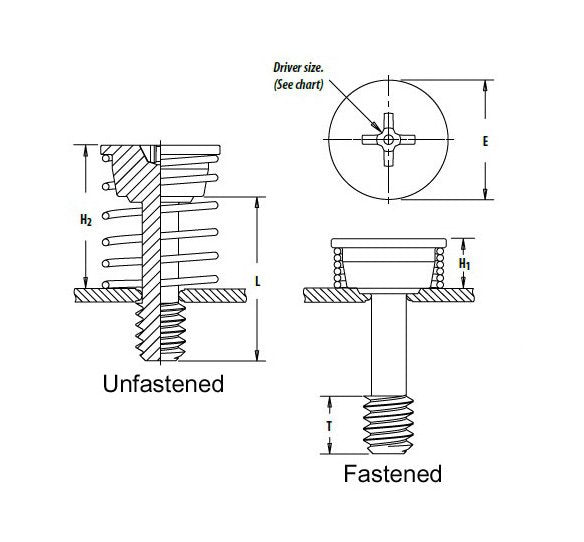

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications Driver Size

#2 Phillips

Specifications E 013 025

10.70 mm

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications H1 013

4.50 mm

Specifications H2 Ref

12.10 mm

Specifications Hole Size In Sheet 008

4 mm

Specifications L Length 04

12 mm

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

5.40 mm

Specifications Min Sheet Thickness

1.02 mm

Specifications Screw Length Code

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

SCBR

Specifications T Nom

3.30 mm

PEM Type SCBR Captive Panel Screw Tool
