PEM Type SCBR Captive Panel Screw - Tool Only
PEM Type SCBR Captive Panel Screw - Tool Only
SKU:PEM-104cff
PEM Type SCBR Captive Panel Screw with self-retracting spring for secure and economical fastening in metal sheets.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM Type SCBR Captive Panel Screw - Tool Only
$14.99
Quantity: 1
Claim Your Seller Account
PEM Type SCBR Captive Panel Screw - Tool Only
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

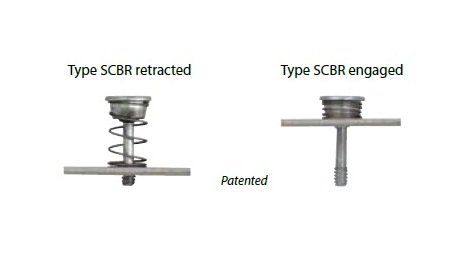

The PEM Type SCBR Spinning Clinch Bolt is a versatile solution for securely installing into metal sheets. This captive panel screw features a controlled clinching action that permanently captivates the screw and spring in the panel, allowing the screw to spin freely. With a spring that keeps the screw retracted when disengaged, this SCBR Type screw offers an economical self-retracting captive screw option that replaces loose hardware. It is RoHS compliant and designed to provide a close centerline-to-edge distance, making it ideal for various applications requiring precision and reliability.
Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)

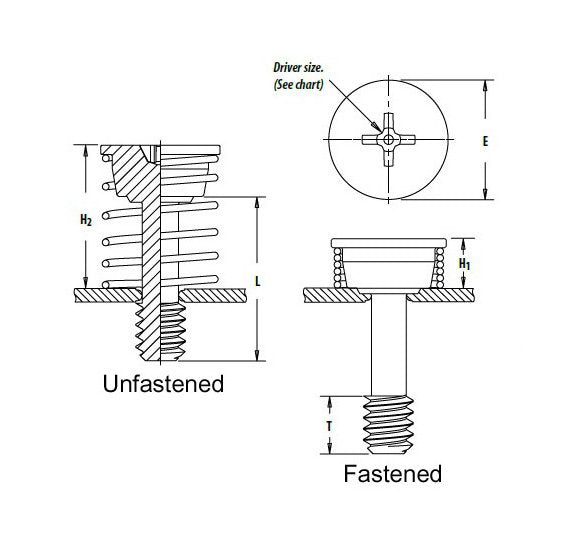

Specifications Cad View
Unfastened
Specifications Driver Size
#2 Phillips
Specifications E 005 010
.381 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications H1 005
.170 in
Specifications H2 Ref
.500 in
Specifications Hole Size In Sheet 0003 0000
.138 in
Specifications L Length 015
.500 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.19 in
Specifications Min Sheet Thickness
.040 in
Specifications Screw Length Code
8
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
SCBR
Specifications T Nom
.130 in
