PEM Type SCBR Captive Panel Screw-Tool with Self-Retracting Spring

Name: PEM Type SCBR Captive Panel Screw-Tool with Self-Retracting Spring
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-44581c
Price: 10.99 USD
Availability: OutOfStock

SKU:PEM-44581c

Efficiently install and secure screws with the PEM Type SCBR Captive Panel Screw-Tool featuring self-retracting spring.

$10.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

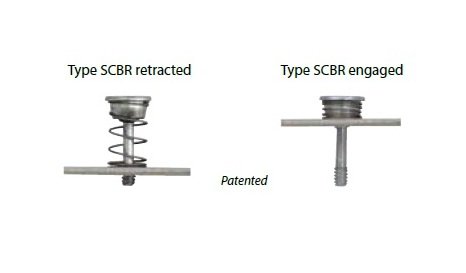

The PEM Type SCBR Captive Panel Screw-Tool combines ease of installation by pressing it into a hole with controlled clinching action, permanently securing the screw and spring in place. This self-retracting captive screw offers economical efficiency by replacing loose hardware, maintaining close centerline-to-edge distance. Designed to be RoHS compliant, each SCBR screw is shipped with a mating spring, ensuring reliable performance and effortless operation.

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

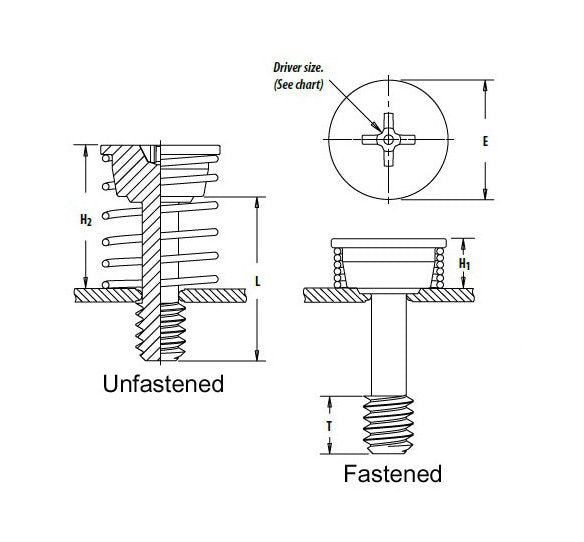

Specifications Cad View

Unfastened

Specifications Driver Size

#1 Phillips

Specifications E 013 025

9.10 mm

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications H1 013

4.20 mm

Specifications H2 Ref

11.80 mm

Specifications Hole Size In Sheet 008

3 mm

Specifications L Length 04

12 mm

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

4.5 mm

Specifications Min Sheet Thickness

1.02 mm

Specifications Screw Length Code

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

SCBR

Specifications T Nom

3.30 mm
