PEM Type SF SpotFast® Metal-to-Metal Fasteners Kit
PEM Type SF SpotFast® Metal-to-Metal Fasteners Kit
SKU:PEM-150aa8
PEM Type SF SpotFast® Fasteners for strong, reliable metal-to-metal joining. Low carbon steel, zinc-plated per ASTM B633, SC1. Ideal for secure, aligned mounting.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Type SF SpotFast® Metal-to-Metal Fasteners Kit
$29.99
Quantity: 1
Claim Your Seller Account
PEM Type SF SpotFast® Metal-to-Metal Fasteners Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Type SF SpotFast® Fasteners are engineered for the permanent joining of two metal sheets, providing exceptional strength and reliability. With specifications meeting the highest industry standards, including a low carbon steel construction and zinc plating per ASTM B633, SC1, these fasteners ensure durability and corrosion resistance. Ideal for applications requiring precise panel alignment and secure mounting, these fasteners offer a Min. Dist. Hole C/L to Edge of 3.6mm and are suitable for use in sheets with hardness up to HRB 80 / HB 150. Trust in the quality and precision of PennEngineering® (PEM®) for your metal sheet attachments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

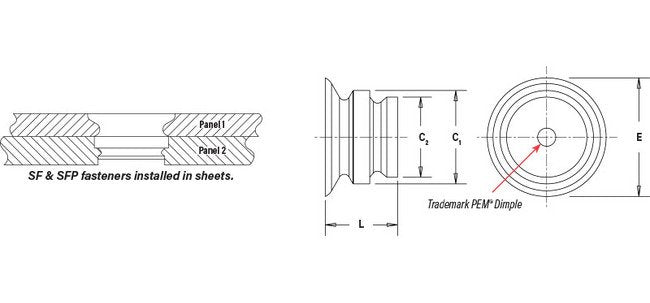

Specifications C1 Max
4.98 mm | .196 in
Specifications C2 Max
3.97 mm | .156 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E Max
5.56 mm | .219 in
Specifications For Use In Sheet Hardness
HRB 80 / HB 150 or less
Specifications L Max
1.5 mm | .059 in
Specifications Min Dist Hole Cl To Edge
3.6 mm | .14 in
Specifications Panel 1 Mounting Hole 008mm003 000in
5.00 mm | .197 in
Specifications Panel 1 Thickness 008mm003in
0.80 mm | .031 in
Specifications Panel 2 Mounting Hole 008mm003 000in
4.00 mm | .157 in
Specifications Panel 2 Thickness Min
0.80 mm | .031 in
Specifications Standard Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Standard Material
Low Carbon Steel
