PEM VariMount Standard Steel Nut with Base Plate - Metric
PEM VariMount Standard Steel Nut with Base Plate - Metric
SKU:PEM-5d632f
PEM VariMount Standard Steel Nut with Base Plate - Efficient, durable, and compliance-ready fastening system for metal panels.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM VariMount Standard Steel Nut with Base Plate - Metric
$29.99
Quantity: 1
Claim Your Seller Account
PEM VariMount Standard Steel Nut with Base Plate - Metric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

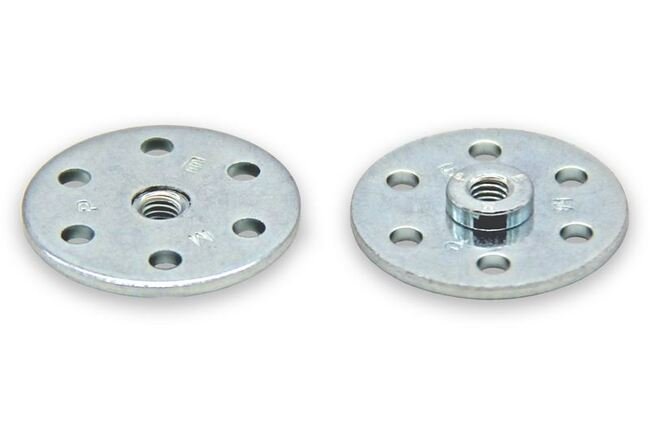

The PEM VariMount fastening system offers a welding-free solution, featuring a standard steel nut permanently mounted into a steel base plate. Designed with precision, the radial holes in the base plate allow versatile mounting options. This assembly is ideal for fastening or bonding to various panel types with ease. The steel base plate is zinc plated per ASTM B633, ensuring durability and corrosion resistance. Compatible with M3 x 0.5 threads and meeting stringent industry standards.
Product Specifications

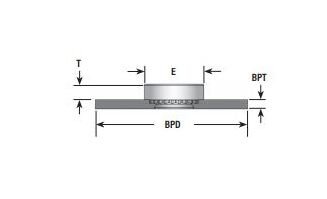

Specifications Base Plate Material
Steel
Specifications Bpd 042
20 mm
Specifications Bpt 01
1.2 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E 025
6.35 mm
Specifications Fastener Material
Steel
Specifications Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Shank Code
1
Specifications Thread Code
M3
Specifications Thread Size
M3 x 0.5
Specifications Type
VM
Specifications T 025
1.5 mm
Category 6
Standard Nut with Base Plate - Steel
