PEM® Type SFK SpotFast® Fasteners for Metal to PCB/Plastic Panels
PEM® Type SFK SpotFast® Fasteners for Metal to PCB/Plastic Panels
SKU:PEM-803a4f
Securely join metal to PCB/plastic with PEM® Type SFK SpotFast® Fasteners. Versatile, reliable, and compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM® Type SFK SpotFast® Fasteners for Metal to PCB/Plastic Panels
$24.99
Quantity: 1
Claim Your Seller Account
PEM® Type SFK SpotFast® Fasteners for Metal to PCB/Plastic Panels
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

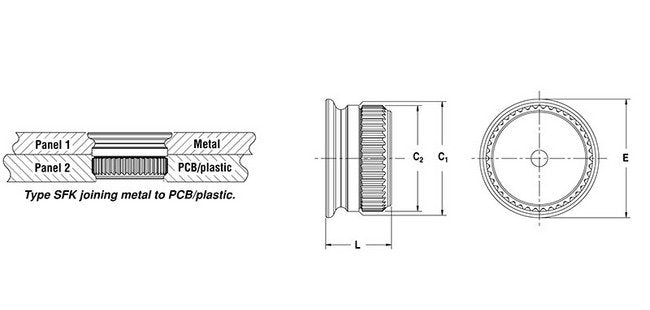

The PEM® Type SFK SpotFast® Fasteners are engineered for reliable joining of metal panels to PCB or plastic panels with precision. These fasteners feature panel thickness adjustments, mounting hole specifications, and meet industry-standard material and finish requirements, ensuring secure attachments and optimal performance. Ideal for sheet-to-sheet attachment and single-point hinging applications, these fasteners offer versatility and durability for various assembly needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications C1 Max
4.98 mm | .196 in
Specifications C2 008mm003in
4.90 mm | .193 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E Max
5.56 mm | .219 in
Specifications For Use In Sheet Hardness
HRB 80 / HB 150 or less
Specifications L Max
3.12 mm | .123 in
Specifications Min Dist Hole Cl To Edge
5.1 mm | .20 in
Specifications Panel 1 Mounting Hole 008mm003 000in
5.00 mm | .197 in
Specifications Panel 1 Thickness 008mm003in
1.60 mm | .063 in
Specifications Panel 2 Mounting Hole 008mm003 000in
4.50 mm | .177 in
Specifications Panel 2 Thickness Min
1.60 mm | .063 in
Specifications Standard Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Standard Material
Low Carbon Steel
