PENCOM .012 Inch Ball Stud Clip

Name: PENCOM .012 Inch Ball Stud Clip
Brand: Pencom
SKU: PEN-e593c2
Price: 9.99 USD
Availability: OutOfStock

SKU:PEN-e593c2

Secure, durable, and precise PENCOM .012 Inch Ball Stud Clip for reliable fastening needs.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

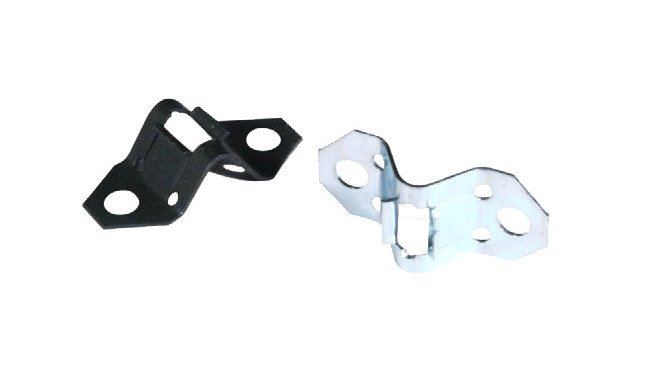

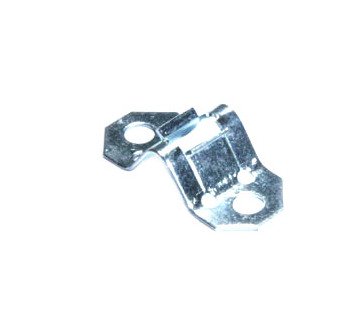

The PENCOM .012 Inch Ball Stud Clip is a high-quality fastening solution designed for various applications. With a Ball Stud Pull-Out Tension of 3.5 lb, this clip ensures secure attachments. Crafted from durable Carbon Steel with OIL finish, it offers reliability and longevity. Its precise dimensions meet industry standards, with a .145 in Hole Diameter and .012 in Material Thickness. Ideal for both consumer and institutional buyers requiring dependable fastening products.

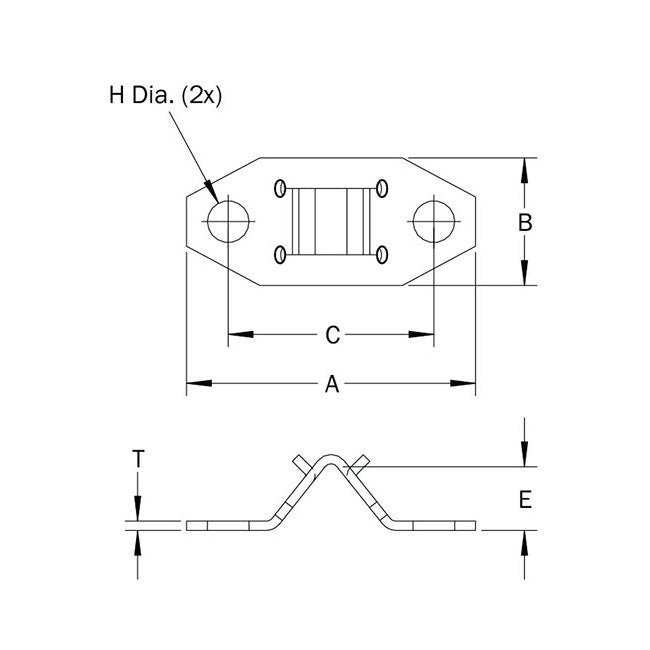

Product Specifications

Dimensions A

.970 in | 24.64 mm

Dimensions B

.440 in | 11.18 mm

Dimensions C

.685 in | 17.40 mm

Dimensions E

.220 in | 5.59 mm

Dimensions Hole Diameter Code

145

Dimensions H Hole Diameter

.145 in | 3.68 mm

Dimensions Material Thickness Code

012

Dimensions Note For Dimensions

All dimensions are reference unless toleranced.

Dimensions T Material Thickness

.012 in | .30 mm

Material And Finish Finish

OIL | Soluble Oil

Material And Finish Material

Carbon Steel

Material And Finish Material Code

STL

Specifications Ball Stud Pull Out Tension 30

3.5 lb | 15 N

PENCOM .012 Inch Ball Stud Clip
