PENCOM .022 Ball Stud Clip - Carbon Steel, Oil Finish

Name: PENCOM .022 Ball Stud Clip - Carbon Steel, Oil Finish
Brand: Pencom
SKU: PEN-fad636
Price: 12.99 USD
Availability: OutOfStock

SKU:PEN-fad636

Durable PENCOM .022 Ball Stud Clip in carbon steel with oil finish for secure fastening. Meets high procurement standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PENCOM .022 Inch Material Thickness Ball Stud Clip is a durable fastening solution designed for reliable performance. Made of high-quality carbon steel with a unique oil finish, this clip ensures long-lasting strength and corrosion resistance. Its precise dimensions and robust construction provide a Ball Stud Pull-Out Tension of 12.0 lb | 53 N, meeting stringent procurement standards. Trust PENCOM for quality and compliance in every application.

Product Specifications

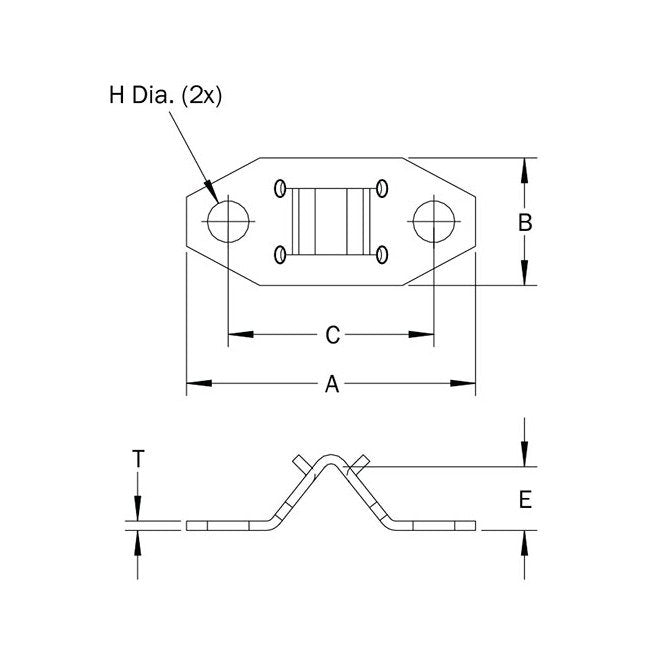

Dimensions A

.970 in | 24.64 mm

Dimensions B

.440 in | 11.18 mm

Dimensions C

.685 in | 17.40 mm

Dimensions E

.220 in | 5.59 mm

Dimensions Hole Diameter Code

145

Dimensions H Hole Diameter

.145 in | 3.68 mm

Dimensions Material Thickness Code

022

Dimensions Note For Dimensions

All dimensions are reference unless toleranced.

Dimensions T Material Thickness

.022 in | .56 mm

Material And Finish Finish

OIL | Soluble Oil

Material And Finish Material

Carbon Steel

Material And Finish Material Code

STL

Specifications Ball Stud Pull Out Tension 30

12.0 lb | 53 N

PENCOM .022 Ball Stud Clip - Carbon Steel, Oil Finish
