PENCOM .028 Inch Ball Stud Clip, Stainless Steel, ASTM A 967

Name: PENCOM .028 Inch Ball Stud Clip, Stainless Steel, ASTM A 967
Brand: Pencom
SKU: PEN-67e2fb
Price: 29.99 USD
Availability: OutOfStock

SKU:PEN-67e2fb

Secure and durable PENCOM .028 Inch Stainless Steel Ball Stud Clip meeting ASTM A 967 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PENCOM .028 Inch Ball Stud Clip is a reliable fastening solution constructed from high-quality 300-Series Stainless Steel, passivated and/or tested per ASTM A 967 for enhanced durability. With a Ball Stud Pull-Out Tension of 18.0 lb | 80 N, this clip offers secure attachment while the precise dimensions ensure a perfect fit. Ideal for various applications, this clip meets stringent industry standards, making it a top choice for both consumer and institutional buyers.

Product Specifications

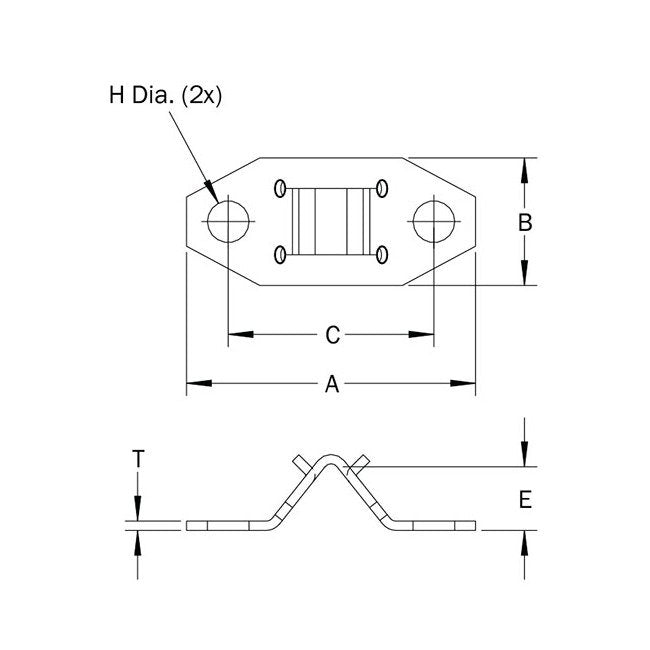

Dimensions A

.970 in | 24.64 mm

Dimensions B

.440 in | 11.18 mm

Dimensions C

.685 in | 17.40 mm

Dimensions E

.220 in | 5.59 mm

Dimensions Hole Diameter Code

135

Dimensions H Hole Diameter

.135 in | 3.43 mm

Dimensions Material Thickness Code

028

Dimensions Note For Dimensions

All dimensions are reference unless toleranced.

Dimensions T Material Thickness

.028 in | .71 mm

Material And Finish Finish

P | Passivated and/or Tested per ASTM A 967

Material And Finish Material

300-Series Stainless Steel

Material And Finish Material Code

Specifications Ball Stud Pull Out Tension 30

18.0 lb | 80 N
