PENCOM .031 Inch Ball Stud Clip

Name: PENCOM .031 Inch Ball Stud Clip
Brand: Pencom
SKU: PEN-641306
Price: 14.99 USD
Availability: OutOfStock

SKU:PEN-641306

Get secure fastening with the PENCOM .031 Inch Ball Stud Clip - durable carbon steel construction & 30.0 lb tension. Compliant with federal standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

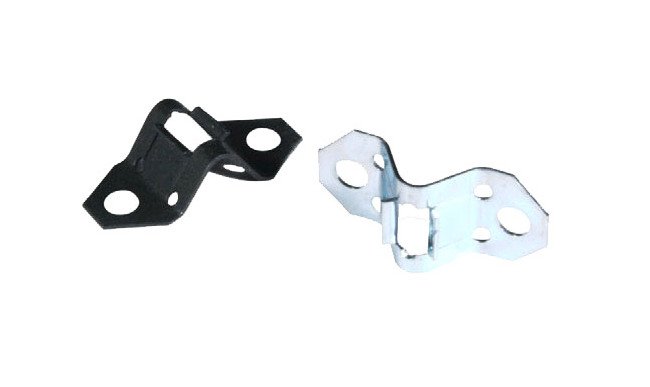

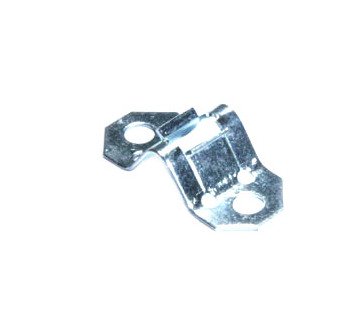

The PENCOM .031 Inch Ball Stud Clip is a high-quality fastening solution designed to meet the demanding requirements of both consumer and institutional buyers. Made of carbon steel with a durable oil finish, this clip offers exceptional reliability and strength. With a ball stud pull-out tension of 30.0 lb | 133 N and precise dimensions ranging from hole diameter to material thickness, the PENCOM BSC Ball Stud Clip ensures secure and efficient fastening in various applications. Compliant with federal procurement standards and industry-specific certifications, this clip is a reliable choice for your fastening needs.

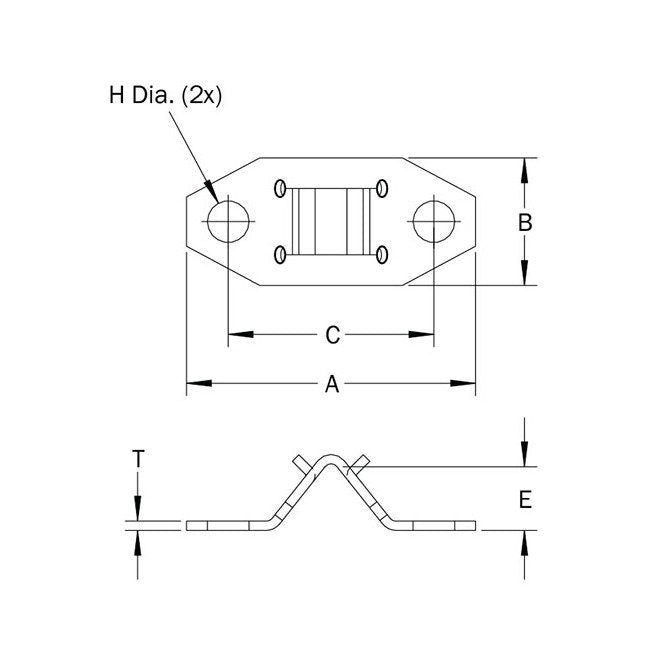

Product Specifications

Dimensions A

.970 in | 24.64 mm

Dimensions B

.440 in | 11.18 mm

Dimensions C

.685 in | 17.40 mm

Dimensions E

.220 in | 5.59 mm

Dimensions Hole Diameter Code

145

Dimensions H Hole Diameter

.145 in | 3.68 mm

Dimensions Material Thickness Code

031

Dimensions Note For Dimensions

All dimensions are reference unless toleranced.

Dimensions T Material Thickness

.031 in | .79 mm

Material And Finish Finish

OIL | Soluble Oil

Material And Finish Material

Carbon Steel

Material And Finish Material Code

STL

Specifications Ball Stud Pull Out Tension 30

30.0 lb | 133 N

PENCOM .031 Inch Ball Stud Clip
