PENCOM .128 Inch Self-Clinching Standoff
PENCOM .128 Inch Self-Clinching Standoff
SKU:PEN-482679
Precision self-clinching standoff for thin panels. RoHS compliant with durable construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM .128 Inch Self-Clinching Standoff
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM .128 Inch Self-Clinching Standoff
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

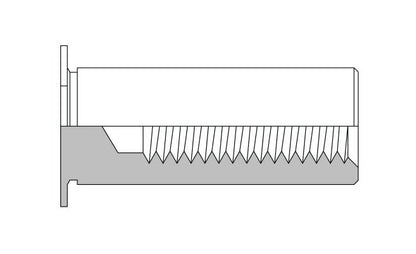

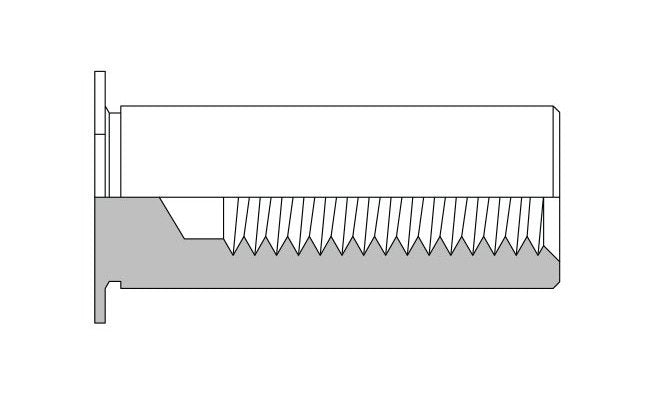

The PENCOM .128 Inch Self-Clinching Standoff is designed for precise spacing in stacked or mating panels. With a self-clinching design for permanent installation in ultra-thin sheets, this standoff offers miniature threads and body diameters, making it ideal for small-scale applications. It meets RoHS compliance, constructed with high-quality materials and finishes for durability and reliability.
Product Specifications
Dimensions C 000 005
.127 in
Dimensions H Nom
.156 in
Dimensions L Length 003
.750 in
Dimensions Min Sheet Thickness
.025 in
Dimensions Sheet Hole Size 003 000
.128 in
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
60 Rockwell B
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 025 Inch In 5052 H34 Aluminum Installation Force
900 lb
Performance 025 Inch In 5052 H34 Push Out Tension
60 lb
Performance 025 Inch In 5052 H34 Torque Out
4.5 in·lb
Performance 025 Inch In Cold Rolled Steel Installation Force
1500 lb
Performance 025 Inch In Cold Rolled Steel Push Out Tension
80 lb
Performance 025 Inch In Cold Rolled Steel Torque Out
6.5 in·lb
Performance Anvil Dimensions
Standoff C Dimension - .127 Inch (in)A +.003/-.000 - .129 Inch (in)B +.007/.00 - .156 Inch (in)
Performance D Minimum Thread Depth
.125 in
Performance Minimum Distance From Sheet Hole Center To Edge
.19 in
Performance Test Sheet Material
.025 5052-H34 Aluminum | .025" Cold-Rolled Steel
Performance Thread Code
080
Performance Thread Size
0-80
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
