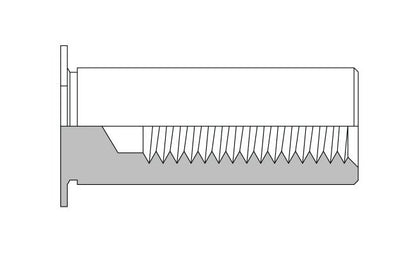

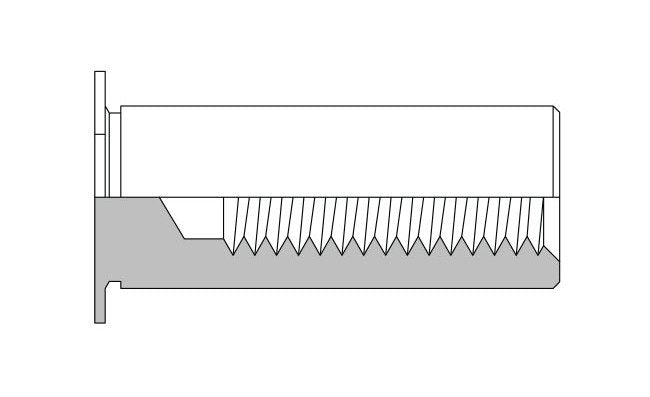

The PENCOM .166 Inch Self-Clinching Standoff is designed to precisely space stacked panels with a durable self-clinching design for permanent installation. Featuring a thread size of 4-40 and a minimum sheet thickness of .025 inches, this standoff offers RoHS compliant materials and finishes. It provides reliable performance with installation forces of up to 2000 lb and push-out tensions of 100 lb, making it ideal for small-scale applications.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - .165 Inch (in)A +.003/-.000 - .167 Inch (in)B +.007/-.000 - .187 Inch (in)
Dimensions C 000 005
.165 in
Dimensions D Minimum Thread Depth
.220 in
Dimensions H Nom
.187 in
Dimensions L Length 003
.750 in
Dimensions Minimum Distance From Sheet Hole Center To Edge
.23 in
Dimensions Min Sheet Thickness
.025 in
Dimensions Sheet Hole Size 003 000
.166 in
Dimensions Thread Code
440
Dimensions Thread Size
4-40
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
60 Rockwell B
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 025 Inch In 5052 H34 Aluminum Installation Force
1500 lb
Performance 025 Inch In 5052 H34 Push Out Tension
70 lb
Performance 025 Inch In 5052 H34 Torque Out
6.0 in·lb
Performance 025 Inch In Cold Rolled Steel Installation Force
2000 lb
Performance 025 Inch In Cold Rolled Steel Push Out Tension
100 lb
Performance 025 Inch In Cold Rolled Steel Torque Out
9.0 in·lb
Performance Test Sheet Material
.025 5052-H34 Aluminum | .025" Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
