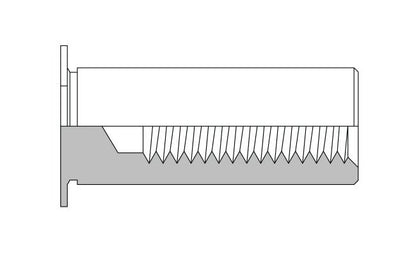

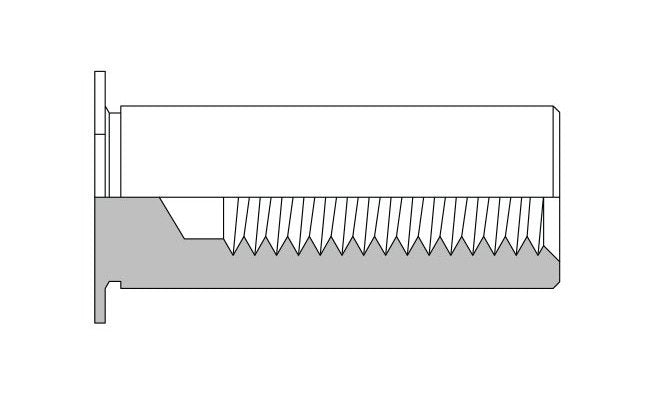

The PENCOM .166" Self-Clinching Standoff is designed to precisely space stacked panels with a self-clinching feature for permanent installation in thin sheets. With a thread size of 0-80 and RoHS compliant materials, this standoff offers exceptional performance in small-scale applications. Tested on .025" Aluminum and Cold-Rolled Steel sheets for reliable installation force, push-out tension, and torque-out values.
Product Specifications
Dimensions C 000 005
.165 in
Dimensions H Nom
.187 in
Dimensions L Length 003
.375 in
Dimensions Min Sheet Thickness
.025 in
Dimensions Sheet Hole Size 003 000
.166 in
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
60 Rockwell B
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note
Standoffs with thread codes 4080, 4256, 6256 and 6440 offer greater wall thicknesses for 0- 80, 2-56 and 4-40 threads, respectively.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 025 Inch In 5052 H34 Aluminum Installation Force
1500 lb
Performance 025 Inch In 5052 H34 Push Out Tension
70 lb
Performance 025 Inch In 5052 H34 Torque Out
6.0 in·lb
Performance 025 Inch In Cold Rolled Steel Installation Force
2000 lb
Performance 025 Inch In Cold Rolled Steel Push Out Tension
100 lb
Performance 025 Inch In Cold Rolled Steel Torque Out
9.0 in·lb
Performance Anvil Dimensions
Standoff C Dimension - .165 Inch (in)A +.003/-.000 - .167 Inch (in)B +.007/.00 - .187 Inch (in)
Performance D Minimum Thread Depth
.125 in
Performance Minimum Distance From Sheet Hole Center To Edge
.23 in
Performance Test Sheet Material
.025 5052-H34 Aluminum | .025" Cold-Rolled Steel
Performance Thread Code
4080
Performance Thread Size
0-80
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
