PENCOM 2.68-3.35mm Stainless Steel BS10M Male Ball Stud
PENCOM 2.68-3.35mm Stainless Steel BS10M Male Ball Stud
SKU:PEN-71e3b5
Durable stainless steel ball stud for secure and damage-free fastening.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PENCOM 2.68-3.35mm Stainless Steel BS10M Male Ball Stud
$29.99
Quantity: 1
Claim Your Seller Account
PENCOM 2.68-3.35mm Stainless Steel BS10M Male Ball Stud
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

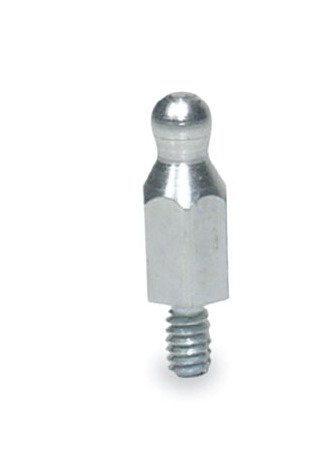

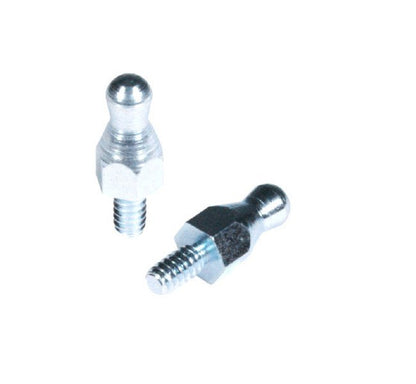

The PENCOM BS10M Male Ball Stud is a versatile spring catch fastener designed for cabinet doors, inspection panels, and more. Featuring a stainless steel construction in compliance with RoHS standards, this ball stud offers durability and precision. With adjustable ball stud lengths and pull-out tension, it accommodates various panel thicknesses. The easy installation process ensures secure fastening without damaging panel finishes, making it ideal for repeated disengagement scenarios.
Product Specifications
Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide
Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
1267
Dimensions L 25
12.67 mm
Dimensions Sheet 1 Thickness
2.68 to 3.35 mm
Dimensions S 13
10.31 mm
Dimensions T 25 00
13.50 mm
Material And Finish Ball Stud Material Code
SS
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish Material
300-Series Stainless Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10M
Specifications Thread Type
Male
Thread Length Thread Length Code
1350
Thread Length Thread Size
M3.5 x .6 6g
