PENCOM .213 Inch Self-Clinching Standoff for Thin Panels
PENCOM .213 Inch Self-Clinching Standoff for Thin Panels
SKU:PEN-0fd8e8
Precision self-clinching standoff for thin panels, 6-32 thread size. RoHS compliant with 12L14 carbon steel build for secure installation. Custom lengths available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM .213 Inch Self-Clinching Standoff for Thin Panels
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM .213 Inch Self-Clinching Standoff for Thin Panels
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

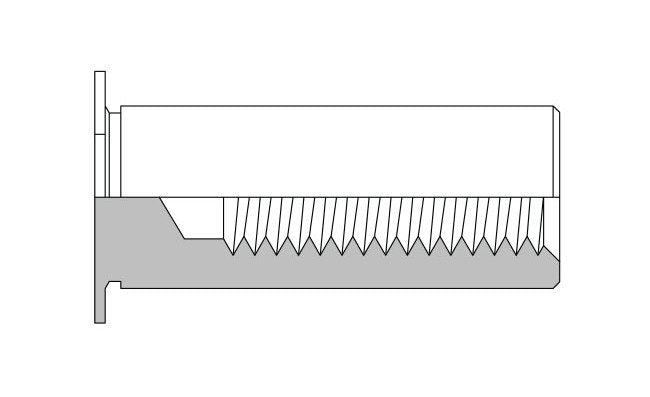

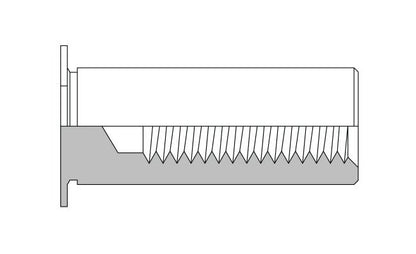

The PENCOM .213 Inch Self-Clinching Standoff is designed to precisely space stacked panels with a self-clinching design for permanent installation in sheets as thin as .025 inches. Featuring a thread size of 6-32 and RoHS compliant materials, this standoff ensures secure and reliable fastening in small-scale applications. Made of 12L14 carbon steel with a zinc finish, it meets stringent performance standards for aluminum and cold-rolled steel sheets. Custom lengths available upon request.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - .212 Inch (in)A +.003/-.000 - .213 Inch (in)B +.007/-.000 - .250 Inch (in)
Dimensions C 000 005
.212 in
Dimensions D Minimum Thread Depth
.270 in
Dimensions H Nom
.250 in
Dimensions L Length 003
.687 in
Dimensions Minimum Distance From Sheet Hole Center To Edge
.27 in
Dimensions Min Sheet Thickness
.025 in
Dimensions Sheet Hole Size 003 000
.213 in
Dimensions Thread Code
632
Dimensions Thread Size
6-32
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
60 Rockwell B
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 025 Inch In 5052 H34 Aluminum Installation Force
1800 lb
Performance 025 Inch In 5052 H34 Push Out Tension
90 lb
Performance 025 Inch In 5052 H34 Torque Out
11.0 in·lb
Performance 025 Inch In Cold Rolled Steel Installation Force
2500 lb
Performance 025 Inch In Cold Rolled Steel Push Out Tension
150 lb
Performance 025 Inch In Cold Rolled Steel Torque Out
15.0 in·lb
Performance Test Sheet Material
.025 5052-H34 Aluminum | .025" Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
