PENCOM 3.25mm Self-Clinching Standoff for Thin Panels
PENCOM 3.25mm Self-Clinching Standoff for Thin Panels
SKU:PEN-2f5e91
Precision self-clinching standoff for thin panels, permanent installation in sheets as thin as 0.63mm. RoHS compliant and tested for performance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PENCOM 3.25mm Self-Clinching Standoff for Thin Panels
$12.99
Quantity: 1
Claim Your Seller Account
PENCOM 3.25mm Self-Clinching Standoff for Thin Panels
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

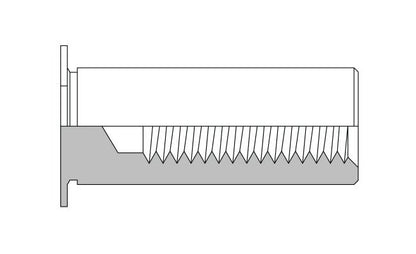

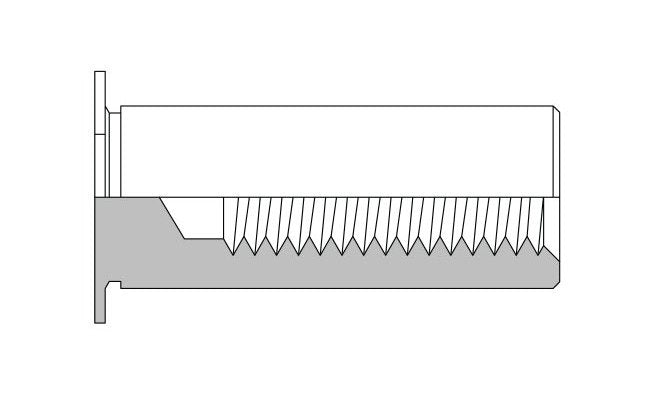

The PENCOM 3.25mm Self-Clinching Standoff is designed to precisely space stacked or mating panels in thin sheets as thin as 0.63mm. With miniature threads for small-scale applications, this standoff offers permanent installation and comes in RoHS compliant materials and finishes. Tested for performance in aluminum and cold-rolled steel, it ensures reliable and secure fastening suitable for various industrial applications.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - 3.23 Millimeter (mm)A +0.08/-0.00 - 3.28 Millimeter (mm)B +0.18/-0.00 - 3.96 Millimeter (mm)
Dimensions C 00 13
3.23 mm
Dimensions D Minimum Thread Depth
3.9 mm
Dimensions H Nom
3.96 mm
Dimensions L Length 08
10.00 mm
Dimensions Minimum Distance From Sheet Hole Center To Edge
4.8 mm
Dimensions Min Sheet Thickness
.63 mm
Dimensions Sheet Hole Size 08 00
3.25 mm
Dimensions Thread Code
M2
Dimensions Thread Size
M2 x .4
Material And Finish Finish
Passivate and/or test per ASTM A 967
Material And Finish Material
303 Stainless Steel
Material And Finish Material Code
SS
Material And Finish Maximum For Use In Sheet Hardness
70 Rockwell B
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 63 Millimeter Mm 5052 H34 Aluminum Installation
4.0 kN
Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out
267 N
Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out
.51 nm
Performance 63 Millimeter Mm Cold Rolled Steel Installation
6.7 kN
Performance 63 Millimeter Mm Cold Rolled Steel Push Out
356 N
Performance 63 Millimeter Mm Cold Rolled Steel Torque Out
.73 nm
Performance Test Sheet Material
.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
