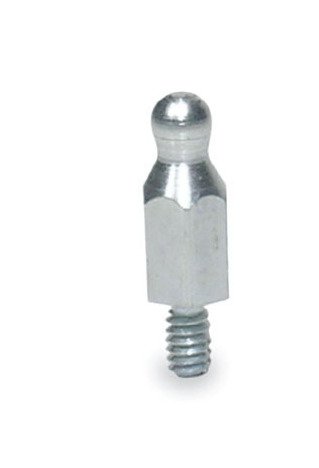

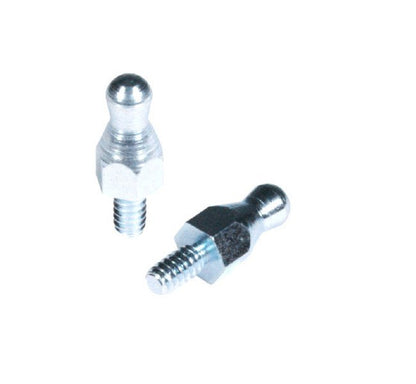

PENCOM 4.05-4.75mm Stainless Steel Ball Stud
PENCOM 4.05-4.75mm Stainless Steel Ball Stud
SKU:PEN-41487a
Versatile stainless steel ball stud for cabinet doors & inspection panels. Adjustable pull-out tension & diverse panel thickness compatibility.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PENCOM 4.05-4.75mm Stainless Steel Ball Stud
$29.99
Quantity: 1
Claim Your Seller Account
PENCOM 4.05-4.75mm Stainless Steel Ball Stud
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PENCOM 4.05-4.75mm Stainless Steel Ball Stud is a versatile fastener suitable for cabinet doors and inspection panels. Its RoHS-compliant plated carbon steel and stainless steel construction ensures durability and prevents damage to panel finishes. With adjustable pull-out tension and the ability to accommodate various panel thicknesses, this product offers reliability and flexibility in applications.
Product Specifications
Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide
Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
1400
Dimensions L 25
14.00 mm
Dimensions Sheet 1 Thickness
4.05 to 4.75 mm
Dimensions S 13
11.63 mm
Dimensions T 25 00
16.50 mm
Material And Finish Ball Stud Material Code
SS
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish Material
300-Series Stainless Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10M
Specifications Thread Type
Male
Thread Length Thread Length Code
1650
Thread Length Thread Size
M3.5 x .6 6g
