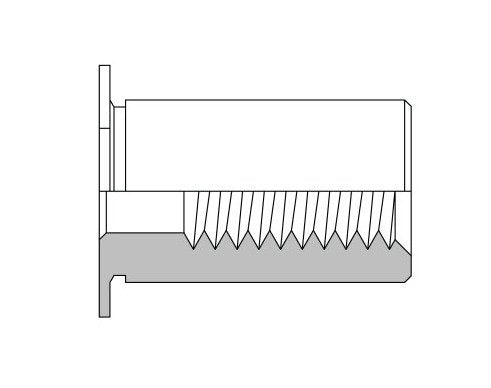

The PENCOM 4.22mm Self-Clinching Standoff is designed to precisely space stacked panels with a self-clinching feature for permanent installation. Constructed with RoHS compliant materials and finishes, it is ideal for thin panels as thin as .025mm. With miniature threads and various body diameters available, this standoff offers versatility and reliable performance.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - 4.19 Millimeter (mm)A +0.08/-0.00 - 4.24 Millimeter (mm)B +0.18/-0.00 - 4.75 Millimeter (mm)
Dimensions C 00 13
4.19 mm
Dimensions D Minimum Thread Depth
6.2 mm
Dimensions H Nom
4.76 mm
Dimensions L Length 08
10.00 mm
Dimensions Minimum Distance From Sheet Hole Center To Edge
5.8 mm
Dimensions Min Sheet Thickness
.63 mm
Dimensions Sheet Hole Size 08 00
4.22 mm
Dimensions Thread Code
M3
Dimensions Thread Size
M3 x .5
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Material And Finish Maximum For Use In Sheet Hardness
60 Rockwell B
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 63 Millimeter Mm 5052 H34 Aluminum Installation
6.7 kN
Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out
311 N
Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out
.68 nm
Performance 63 Millimeter Mm Cold Rolled Steel Installation
8.9 kN
Performance 63 Millimeter Mm Cold Rolled Steel Push Out
445 N
Performance 63 Millimeter Mm Cold Rolled Steel Torque Out
1.01 nm
Performance Test Sheet Material
.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
