PENCOM 5.41mm Self-Clinching Standoff for Thin Panels

Name: PENCOM 5.41mm Self-Clinching Standoff for Thin Panels
Brand: Pencom
SKU: PEN-47fa4c
Price: 24.99 USD
Availability: OutOfStock

SKU:PEN-47fa4c

PENCOM 5.41mm Self-Clinching Standoff for Thin Panels. Ensures precise panel spacing in installations up to 0.63mm thick. RoHS compliant and durable aluminum construction.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

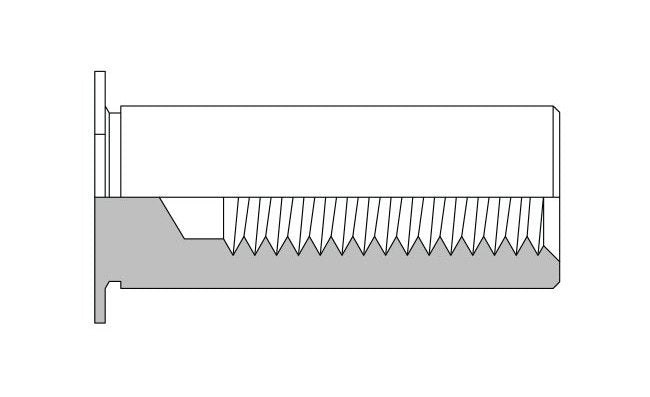

The PENCOM 5.41mm Sheet Hole Size Self-Clinching Standoff is designed for precise panel spacing. With a self-clinching mechanism for secure installation, it is ideal for thin sheets down to 0.63mm. This standoff meets RoHS standards and offers durability with aluminum material and plain finish.

Product Specifications

Dimensions Anvil Dimensions

Standoff C Dimension - 5.39 Millimeter (mm)A +0.08/-0.00 - 5.41 Millimeter (mm)B +0.18/-0.00 - 6.35 Millimeter (mm)

Dimensions C 00 13

5.39 mm

Dimensions D Minimum Thread Depth

7.0 mm

Dimensions H Nom

6.35 mm

Dimensions L Length 08

18.00 mm

Dimensions Minimum Distance From Sheet Hole Center To Edge

7.1 mm

Dimensions Min Sheet Thickness

.63 mm

Dimensions Sheet Hole Size 08 00

5.41 mm

Dimensions Thread Code

M35

Dimensions Thread Size

M3.5 x .6

Material And Finish Finish

Plain

Material And Finish Material

Aluminum

Material And Finish Material Code

Material And Finish Maximum For Use In Sheet Hardness

50 Rockwell B

Note For Performance Note For Performance

Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.

Note Note For Length

Custom Lengths And Type Combinations Available By Request

Performance 63 Millimeter Mm 5052 H34 Aluminum Installation

8.0 kN

Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out

400 N

Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out

1.24 nm

Performance 63 Millimeter Mm Cold Rolled Steel Installation

Not Recommended kN

Performance 63 Millimeter Mm Cold Rolled Steel Push Out

Not Recommended N

Performance 63 Millimeter Mm Cold Rolled Steel Torque Out

Not Recommended nm

Performance Test Sheet Material

.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel

Specifications Industry Standardscertifications

Restriction of Hazardous Substances (RoHS)
