PENCOM 5.84-6.50mm Carbon Steel BS10M Male Ball Stud
PENCOM 5.84-6.50mm Carbon Steel BS10M Male Ball Stud
SKU:PEN-f73fe4
Versatile, durable PENCOM BS10M Male Ball Stud for secure fastening without panel damage.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM 5.84-6.50mm Carbon Steel BS10M Male Ball Stud
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM 5.84-6.50mm Carbon Steel BS10M Male Ball Stud
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

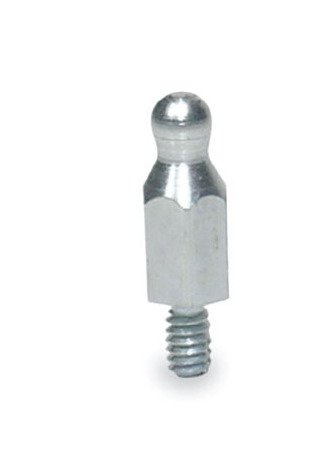

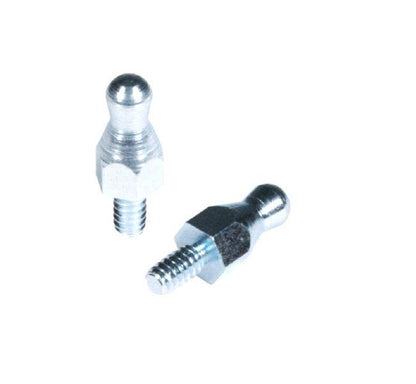

The PENCOM BS10M Male Ball Stud is a versatile and durable fastening solution suitable for cabinet doors, inspection panels, and more. Made of RoHS-compliant plated carbon steel, it ensures secure fastening without damaging panel finishes. With adjustable ball stud lengths and pull-out tension, this ball stud offers flexibility to accommodate various panel thicknesses. Easy to install and compatible with different mounting methods, this PENCOM ball stud is a reliable choice for applications requiring repeated disengagement.
Product Specifications
Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide
Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
1588
Dimensions L 25
15.88 mm
Dimensions Sheet 1 Thickness
5.84 to 6.50 mm
Dimensions S 13
13.51 mm
Dimensions T 25 00
18.00 mm
Material And Finish Ball Stud Material Code
STL
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish Material
Carbon Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10M
Specifications Thread Type
Male
Thread Length Thread Length Code
1800
Thread Length Thread Size
M3.5 x .6 6g
