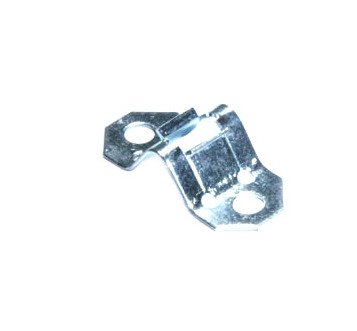

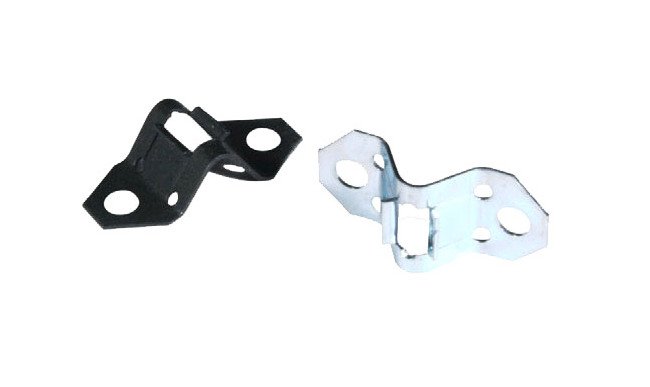

PENCOM BSC .012 Inch Material Thickness Ball Stud Clip

Name: PENCOM BSC .012 Inch Material Thickness Ball Stud Clip
Brand: Pencom
SKU: PEN-f063ad
Price: 9.99 USD
Availability: OutOfStock

SKU:PEN-f063ad

Secure and durable PENCOM BSC clip with 3.5 lb Ball Stud Pull-Out Tension, Carbon Steel construction, and PHOS-OIL finish.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PENCOM BSC .012 Inch Material Thickness Ball Stud Clip is a reliable and durable fastening solution suitable for a wide range of applications. With a Ball Stud Pull-Out Tension of 3.5 lb, this clip offers secure attachment. Made of Carbon Steel with a PHOS-OIL finish, it ensures long-lasting performance. The dimensions, including a .145 inch Hole Diameter and .012 inch Material Thickness, adhere to strict quality standards. Ideal for institutional procurement needs, this clip combines strength, precision, and corrosion resistance.

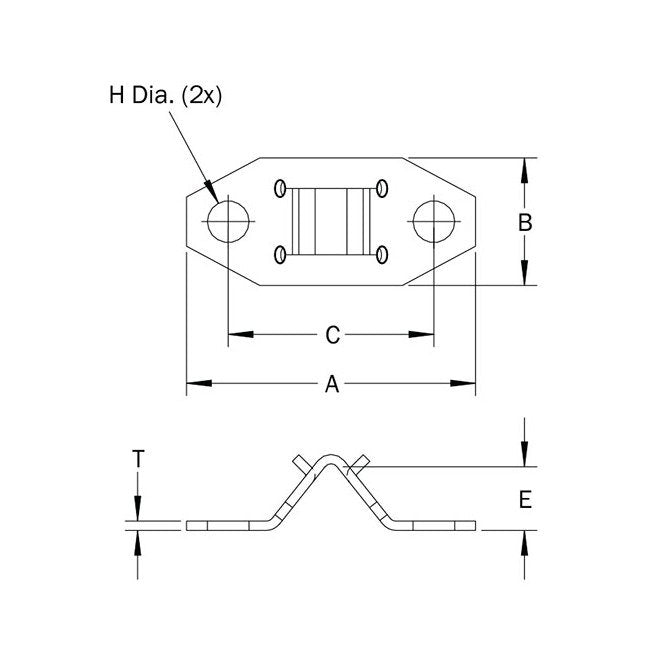

Product Specifications

Dimensions A

.970 in | 24.64 mm

Dimensions B

.440 in | 11.18 mm

Dimensions C

.685 in | 17.40 mm

Dimensions E

.220 in | 5.59 mm

Dimensions Hole Diameter Code

145

Dimensions H Hole Diameter

.145 in | 3.68 mm

Dimensions Material Thickness Code

012

Dimensions Note For Dimensions

All dimensions are reference unless toleranced.

Dimensions T Material Thickness

.012 in | .30 mm

Material And Finish Finish

PHOS-OIL | Phosphate with Oil

Material And Finish Material

Carbon Steel

Material And Finish Material Code

STL

Specifications Ball Stud Pull Out Tension 30

3.5 lb | 15 N

PENCOM BSC .012 Inch Material Thickness Ball Stud Clip
